1/2 LUBRICATOR OIL MIST STD SIGHT DOME POLY BOWL NO BRACKET

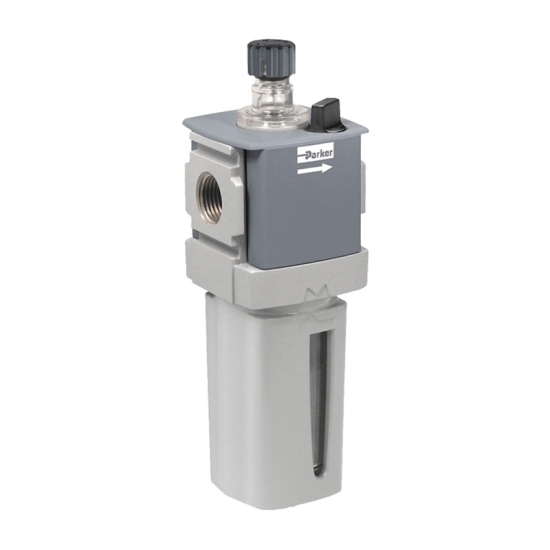

Parker P33L Aluminum 5 MICRON Element Global Modular Standard Lubricator, 1/2 IN, NPT, 102 SCFM
- Manufacturer: Parker Hannifin Corp
- Brand: Parker
- MGPN: 050P33LA94LGNN
- MPN: P33LA94LGNN
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Global Modular Standard Lubricator, Series/Model: Series P33L, Nominal Size: 1/2 IN, Pressure Rating: 150 PSI, Connection: NPT, Flow Rate: 102 SCFM, 5 MICRON Element, Bowl Type: Poly Bowl With Bowl Guard, Temperature Rating: -13 To 125 DEG F, Length: 2.9 IN, 2.9 IN Width, 9.21 IN Height, Material: Aluminum Body, ABS Body Cap, Industry Standards: OSHA Compliant, CE Certified, RoHS Compliant, Ex ATEX
| Item Name | : | Global Modular Standard Lubricator |
| Series/Model | : | Series P33L |
| Nominal Size | : | 1/2 IN |
| Pressure Rating | : | 150 PSI |
| Connection | : | NPT |
| Flow Rate | : | 102 SCFM |
| Element | : | 5 MICRON |
| Bowl Type | : | Poly Bowl With Bowl Guard |
| Temperature Rating | : | -13 To 125 DEG F |
| Length | : | 2.9 IN |
| Width | : | 2.9 IN |
| Height | : | 9.21 IN |
| Material | : | Aluminum Body, ABS Body Cap |
| Industry Standards | : | OSHA Compliant, CE Certified, RoHS Compliant, Ex ATEX |
- Integral 1/2 IN or 3/4 IN ports (NPT, BSPP and BSPT)
- Robust but lightweight aluminum construction
- Proportional oil delivery over a wide range of air flows
- Finger tip ratchet control for precise oil drip rate adjustment
- Fill from top under system pressure
