TP323N 3 SW PVC TRUE SET FLGD

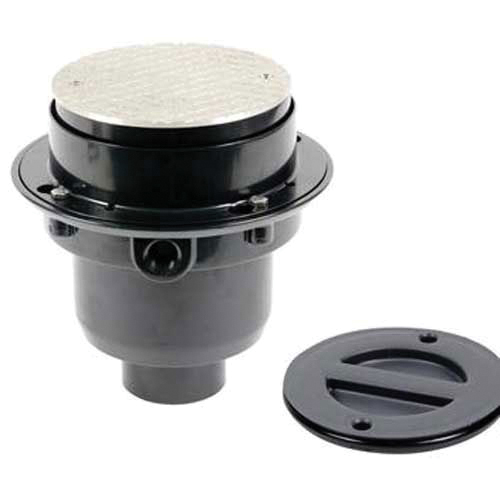

Oatey TP323N True Set™ PVC With Die-Cast Nickel Bronze Cover Commercial Flanged Cleanout With 6 IN Round Cover, 4 IN ID X 3 IN OD, Solvent Weld
- Manufacturer: Oatey
- Brand: Oatey
- MGPN: TP323N
- MPN: TP323N
- UPC: 038753900988
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Sub Brand | : | True Set™ |
| Item Name | : | Flanged Cleanout With 6 IN Round Cover |
| Type | : | Commercial |
| Size | : | 4 IN Inside X 3 IN Outside |
| Connection Type | : | Solvent Weld |
| Material | : | PVC With Die-Cast Nickel Bronze Cover |
| Material Standard | : | ASTM D2665 |
| Industry Standards | : | ASME A112.6.3, CSA B79 Certified, CUPC Listed |
| Width | : | 6.4 IN |
| Height | : | 8 IN |
Oatey’s True Set™ Flanged commercial drain comes ready to install out of the carton with a strainer protected under a concrete tight, impact resistant cover. The barrel assembly is adjustable up 2-3/4 IN above the poured floor height to accommodate any finished floor surface (up to an additional 1 IN of height can be achieved by using the leveling ring TP5KIT or TP6KIT). All True Set™ drains are available in gray PVC or black ABS plastic and come with a one-half inch FIP threaded trap primer knock-out. All drains include a cleanout plug (rated to 5 psi per CSA B79) which can be used in place of a test ball up to 15 PSI.
