1 NIBCO KT403W UL CHECK
NIBCO KT-403-W NL7E00A Fire Protection Check Valve, 1 IN, NPT X NPT, Bronze, 200 PSI WWP
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV CK BR UL KT403 1
- MPN: NL7E00A
- UPC: 039923633316
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:

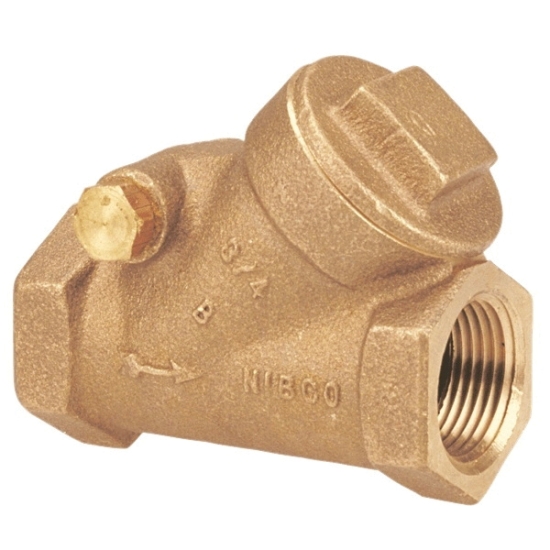

The NIBCO bronze horizontal swing check valve has a Y-pattern design with renewable Buna-N seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The check valve is recommended for fire protection trim valve service.
NIBCO KT-403-W Fire Protection Check Valve, 1 IN Nominal, NPT X NPT Connection, 200 PSI WWP, Pressure Class: Class 125, Bronze Body, Material Standard: ASTM B62 C83600, ASTM B16 C36000, ASTM B62 C83600, Industry Standards: MSS-SP80, 3.56 IN Width, Other Physical Dimension: 2.31 IN Center To Top, Additional Specifications: Disc Material: Rubber
| Item Name | : | Fire Protection Check Valve |
| Series/Model | : | KT-403-W |
| Nominal Size | : | 1 IN |
| Connection Type | : | NPT X NPT |
| Pressure Rating | : | 200 PSI WWP |
| Pressure Class | : | Class 125 |
| Body Material | : | Bronze |
| Material Standard | : | ASTM B62 C83600, ASTM B16 C36000, ASTM B62 C83600 |
| Industry Standards | : | MSS-SP80 |
| Width | : | 3.56 IN |
| Other Physical Dimension | : | 2.31 IN Center To Top |
| Additional Specifications | : | Disc Material: Rubber |
- Y-pattern
- Renewable disc
- Regrindable seat
