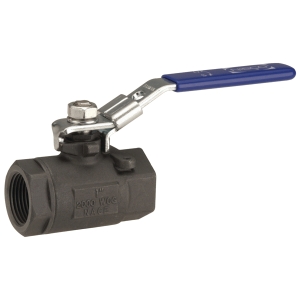

1 NIBCO T580-S6R-66-LL BALL

The NIBCO® stainless steel ball valve provides bubble-tight shut-off at 2000 PSI. The two-piece valve may be used on hot/cold water, HVAC, and is recommended for process piping, some chemical and utility service applications. This valve features a standard locking lever handle for security and a cast mounting pad for actuation purposes. It may be used for isolation and throttling (half open to full open only).

NIBCO NIBCO Ball Valve, Type: 2-Piece, Blowout-Proof Stem, Quarter-Turn, NIBCO, Ball Valve, Series/Model: T-580-S6-R-66-LL, 1 IN Nominal, Connection Type: FIPT, 2000 PSI (CWP) Non-Shock, 400 DEG F, Stainless Steel Body, Locking Lever Handle Operator, Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Carbon Filled PTFE Packing, Stainless Steel Gland, Reinforced RPTFE Seat, Reinforced RPTFE Seal, Material Standard: Ball: ASTM A276/ASTM A351, Body: ASTM A351/ASTM A351, Body End: ASTM A351, Handle Nut: ASTM A276, Locking Handle: ASTM A240 Type 304, Stem: ASTM A276, Packing Gland: ASTM A276, Material Specification: Ball: UNS CF8M, Body: UNS CF8M, Body End: UNS CF8M, Industry Standards: MSS SP-110, Other Physical Dimension: 5.83 IN Inlet Center To Top Of Handle, 2.56 IN Handle Length, Additional Specifications: Ball Material: Stainless Steel, Flow Co-Efficient (Cv): 36, NIBCO, Conventional Port, 1.800 LB Weight

• Valve pressure rating 2000 PSI/138 BAR non-shock cold working pressure
• Maximum temperature rating 400 DEG F
• Conventional port
• Blowout-proof stem design
• Stainless steel ball and stem
• Cast ISO mounting pad
• Vented ball
• Threaded end connections
• Locking lever handle
• Conforms to MSS SP-110

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/037S595YBV_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/037T580S6R66LLBV_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/037T580S6R66LLBV_Spec.pdf
