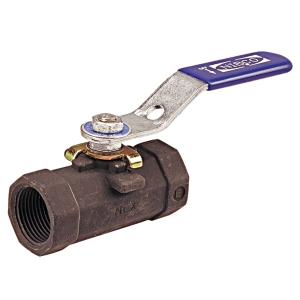

1-1/2 NIBCO T560-CSR-66 BALL VALVE

The NIBCO® reduced port carbon steel ball valve meets fire safe requirements. The reinforced PTFE seat ring, graph oil stem packing and stainless steel ball and stem exhibit high chemical-resistance properties and is recommended for process piping. It features a standard locking lever handle for security purposes. It may be used for isolation and throttling (half open to full open only). Also available with oval handle.

NIBCO NIBCO Ball Valve, Type: 1-Piece, Blowout-Roof Stem, Quarter-Turn, Ball Valve, Series/Model: T-560-CS-R-66-FSOV, 1-1/2 IN Nominal, Connection Type: FIPT, 200 PSI (CWP) Non-Shock, 400 DEG F, Carbon Steel Body, Oval Handle Operator, Carbon Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Reinforced RPTFE Seat, Material Standard: Ball: ASTM A276/ASTM A351, Body: ASTM A216 Grade WCB, Body Inserts: ASTM A216 Grade WCB, Handle: ASTM A283, Handle Nut: ASTM A283, Stem: ASTM A276, Packing Gland: ASTM A108 Type 1045, Material Specification: Ball: UNS CF8M, Industry Standards: MSS SP-110, API 607, Other Physical Dimension: 3.29 IN Inlet Center To Top Of Handle, 7.4 IN Handle Length, Additional Specifications: Ball Material: Stainless Steel, Flow Co-Efficient (Cv): 52, NIBCO, Reduced Port, Firesafe: Yes, 3.241 LB Weight

• Valve pressure rating 2000 PSI/138 BAR non-shock cold working pressure
• Maximum temperature rating 400 DEG F
• Reduced port
• Blowout-proof stem design
• Stainless steel ball and trim
• Vented ball
• Threaded end connections
• Locking lever handle
• Conforms to MSS SP-110
• API-607 fourth edition fire safe

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/037S595YBV_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVBACST560CSR661_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/VLVBACSSS112RNDHDL_Spec.pdf
