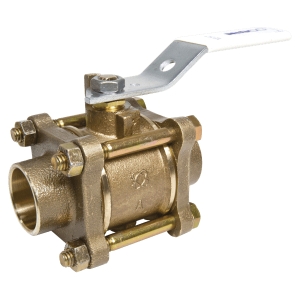

2-1/2 NIBCO S-595Y-LF BALL VALVE
NIBCO S-595-Y-LF NJ9302E Ball Valve, 2-1/2 IN, Female Solder Cup, 600 PSI (CWP) Non-Shock, 100 PSI (SWP) At 300 DEG F
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: VLV BA BR S595YLF 2-1/2
- MPN: NJ9302E
- UPC: 039923319883
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® three-piece lead-free ball valve is constructed of lead-free dezincification-resistant (DZR) high-quality performance bronze silicon alloy per ASTM specifications. The valve features solder ends for easy installation. The valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.
NIBCO Ball Valve, Type: 3-Piece, Blowout-Proof Stem, Full-Port, Quarter-Turn, Ball Valve, Series/Model: S-595-Y-LF, 2-1/2 IN Nominal, Connection Type: Female Solder Cup, 600 PSI (CWP) Non-Shock, 100 PSI (SWP) At 300 DEG F, Bronze Body, Standard Lever Handle Operator, Steel Handle, Silicon Bronze Stem, Bronze Trim, PTFE Packing, Brass Gland, Virgin PTFE Seat, Material Standard: Ball: ASTM B283/ASTM A276, Body: ASTM B584, Body Bolts: ASTM A449 Grade 5, Body End: ASTM B584, Body Nut: ASTM A449 Grade 5, Stem: ASTM B371, Packing Gland: ASTM B16, Material Specification: Ball: UNS C69300, Body: UNS C87850, Body End: UNS C87850, Stem: UNS C69300, Packing Gland: UNS C36000, Industry Standards: MSS SP-110/145, NSF/ANSI/CAN-61/372-8, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, Lead Free: Yes, Other Physical Dimension: 5.51 IN Inlet Center To Top Of Handle, 8.03 IN Handle Length, Additional Specifications: Ball Material: Silicon Performance Bronze/Stainless Steel, 17.403 LB Weight
| Item Name | : | Ball Valve |
| Type | : | 3-Piece, Blowout-Proof Stem, Full-Port, Quarter-Turn |
| Series/Model | : | S-595-Y-LF |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Female Solder Cup |
| Pressure Rating | : | 600 PSI (CWP) Non-Shock, 100 PSI (SWP) At 300 DEG F |
| Body Material | : | Bronze |
| Operator Type | : | Standard Lever Handle |
| Handle Material | : | Steel |
| Stem Material | : | Silicon Bronze |
| Trim Material | : | Bronze |
| Packing Material | : | PTFE |
| Gland Material | : | Brass |
| Seat Material | : | Virgin PTFE |
| Material Standard | : | Ball: ASTM B283/ASTM A276, Body: ASTM B584, Body Bolts: ASTM A449 Grade 5, Body End: ASTM B584, Body Nut: ASTM A449 Grade 5, Stem: ASTM B371, Packing Gland: ASTM B16 |
| Material Specification | : | Ball: UNS C69300, Body: UNS C87850, Body End: UNS C87850, Stem: UNS C69300, Packing Gland: UNS C36000 |
| Industry Standards | : | MSS SP-110/145, NSF/ANSI/CAN-61/372-8, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 5.51 IN Inlet Center To Top Of Handle, 8.03 IN Handle Length |
| Additional Specifications | : | Ball Material: Silicon Performance Bronze/Stainless Steel |
| Weight | : | 17.403 LB |
- Valve pressure rating 600 PSI/41.4 BAR non-shock cold working pressure
- Full port
- Repairable design
- Silicon Performance Bronze™ trim
- Blowout-proof stem design
- PTFE seat
- White handle for easy lead-free identification
- NIBCO® double-oval lead-free body marking
- Solder end connections
- Dezincification-resistant
- Lead-free
- Conforms to MSS SP-110
- NSF/ANSI/CAN-61 and 372
