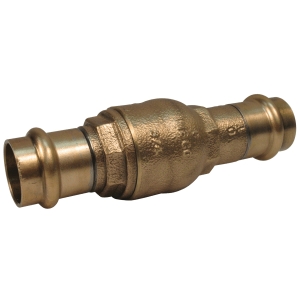

1 NIBCO PF480Y PXP FEM BRZ INLINE CK

The NIBCO® Press System® bronze in-line Ring Check™ valve features press-to-connect end connections with an inboard bead and EPDM O-rings for quick and easy joinery to the piping system. Simply applying pressure from a press-fit tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux.

NIBCO Press System®, Ring Check® In-Line Lift Check Valve, Type: Spring Actuated, Press System®, Ring Check®, In-Line Lift Check Valve, Series/Model: PF-480-Y, 1 IN Nominal, Connection Type: Female Press, 200 PSI (CWP) Non-Shock At 250 DEG F, 250 DEG F Maximum Service, Bronze Body, Stainless Steel Stem, PTFE Seat, Material Standard: Adapter: ASTM B61, Body: ASTM B584, Body End: ASTM B584, Seat Screw: ASTM A276, Stem: ASTM A582, Material Specification: Adapter: UNS C92200, Body: UNS C84400, Body End: UNS C84400, Seat Screw:S43000, Washer: UNS C30300, Industry Standards: MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 2 IN Width, Lead Free: No

• Valve pressure rating 200 PSI/13.8 BAR non-shock cold working pressure
• Maximum service temperature 250 DEG F
• In-line lift type
• Resilient discs
• Spring actuated
• Press x press female end connections
• Dezincification-resistant
• Use in US drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-80

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCOPRESSVLVCKBRPXPPF480Y1_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCOPRESSVLVCKBRPXPPF480Y1_Spec.pdf
