5 WROT C X C 45 ELL

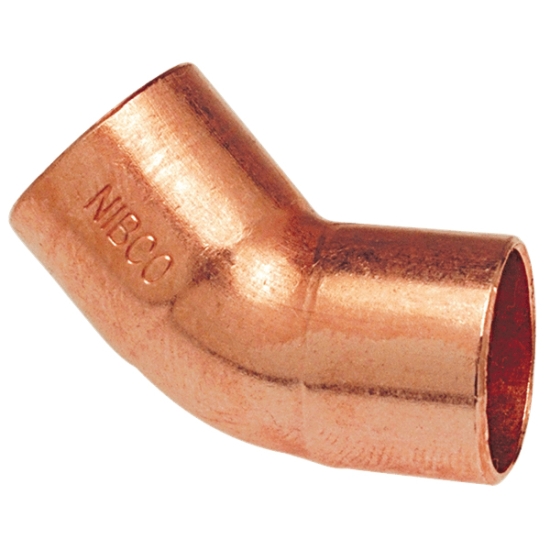

NIBCO 606 9043750 45 DEG Elbow, 5 IN, Female Solder Cup, Wrot Copper
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: 500CU45
- MPN: 9043750
- UPC: 039923311702
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® lead-free wrot copper solder pressure 45 DEG elbow is used in residential and commercial systems such as potable water, air conditioning and refrigeration. Options include cleaned and bagged for oxygen service (medical gas).
NIBCO 45 DEG Elbow, 45 DEG Elbow, Series/Model: 606, 5 IN Nominal, Connection Type: Female Solder Cup, Wrot Copper, Material Standard: ASTM B75, Material Specification: UNS C12200, Industry Standards: ASME B16.22, MSS SP-104, NSF/ANSI/CAN-61 And 372, NFPA 99, UL 207, Wrot: Yes, Lead Free: Yes, 5.568 LB Weight
| Item Name | : | 45 DEG Elbow |
| Series/Model | : | 606 |
| Nominal Size | : | 5 IN |
| Connection Type | : | Female Solder Cup |
| Material | : | Wrot Copper |
| Material Standard | : | ASTM B75 |
| Material Specification | : | UNS C12200 |
| Industry Standards | : | ASME B16.22, MSS SP-104, NSF/ANSI/CAN-61 And 372, NFPA 99, UL 207 |
| Wrot | : | Yes |
| Lead Free | : | Yes |
| Weight | : | 5.568 LB |
- Lead-free
- Dezincification-resistant
- ASTM B75 alloy C12200
- NSF/ANSI/CAN-61 and 372
- Material and workmanship per ASME B16.22
- Material, workmanship and dimensions per MSS SP-104
- Material, workmanship and dimensions per MSS SP-109 (5 - 8 IN)
- NFPA 99 health care facilities gas and vacuum systems and the compressed gas association, Pamphlet G4.1 (medical gas)
- UL 207 recognized to 700 PSI (select diameters)
