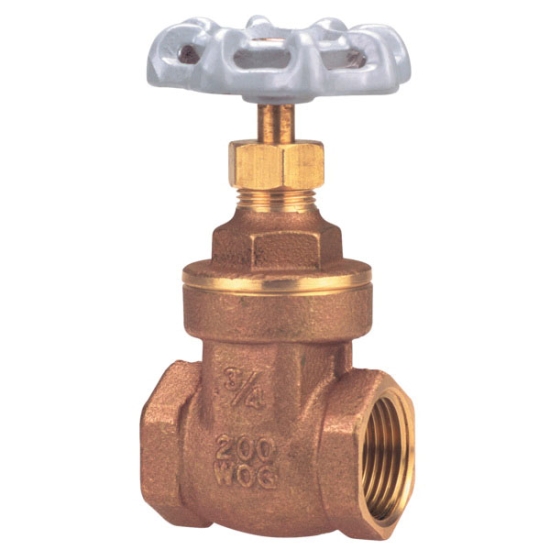

2 TI-8 BRZ THRD FP GATE VALVE

The Nibco® brass gate valve features a screw-in bonnet for a durable, pressure-tight seal. The non-rising stem gate valve with the cast iron handwheel offers positive shut-off. Threaded ends allow for ease of installation.

Full-Port Gate Valve, Series/Model: Model TI-8, Nominal Size: 2 IN, Connection Type: FNPT, Pressure Rating: 200 PSI (CWP) Non-Shock, Brass Body Material, Handwheel Operator Type, Handle Material: Cast Iron, Stem Material: Brass, Packing Material: Non-Asbestos Graphite/Rubber, Brass Gland, Material Standard: Body: ASTM B584, Gland: ASTM B16, Handle: ASTM A48 Class 35, Material Specification: Body: UNS C85700, Gland: UNS C36000, 2.83 IN Width, Lead Free: No, Other Physical Dimension: 6.02 IN Inlet Center To Top Of Handle, 3.27 IN Handwheel Diameter

• Valve pressure rating 200 PSI/14 BAR non-shock cold working pressure
• Full port (1/4 - 2 IN)
• Conventional port (2-1/4 - 4 IN)
• Brass body
• NPT x NPT end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014

• Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nibco_075TFP600RG00828_Catalog.pdf
• Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nibco_N00116D_Specification_Sheet.pdf
• Warranty Information https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nibco_075TFP600RG00828_Warranty_Information.pdf
