1 X 1 X 3/4 NIBCO PRESS PC612 PXPXF

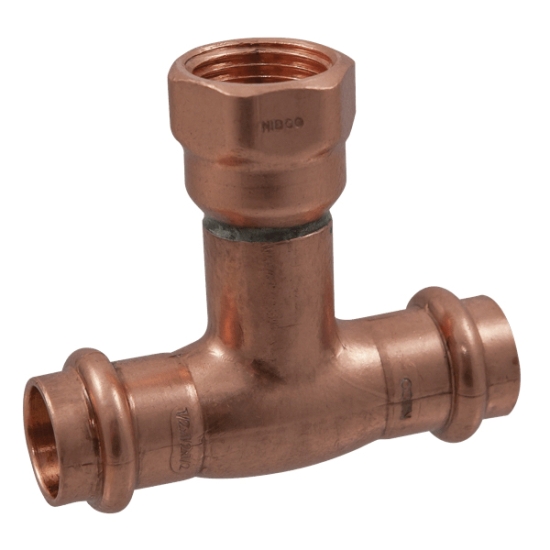

The NIBCO® Press System® wrot copper female threaded tee features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The tee has press connections and a female NPT thread. It allows for a connection to be made in a continuous pipeline and branch out to a different direction between press connections and a threaded connection.

NIBCO Press System® Reducing Tee, Press System®, Reducing Tee, Series/Model: PC612, 1 X 1 X 3/4 IN Nominal, Connection Type: Press X Press X FNPT, Wrot Copper, Material Standard: ASTM B75, Material Specification: UNS C12200, 200 PSI (CWP) Maximum Pressure, -20 To 250 DEG F, Industry Standards: ASME B16/51, CSA MSE 13 And PS-117, UPC Listed, Other Physical Dimension: 2-27/32 IN Center To End, Wrot: Yes, Lead Free: Yes

• Operating pressure 200 PSI CWP
• Temperature range -20 to 250 DEG F
• Lead-free
• Dezincification-resistant
• ASTM B75 alloy C12200 copper
• Complies with ASME B16/51 performance
• Third party certified to UPC
• Third party certified to the performance requirements of CSA MSE 13 and PS-117

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Inst.pdf
• MSDS Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/031CULT90_MSDS.pdf
