Supplying Quality Pipe, Valves and Fittings with Services Built for Contractors and Industries

3/4 T585-70-UL BRZ BALL VALVE

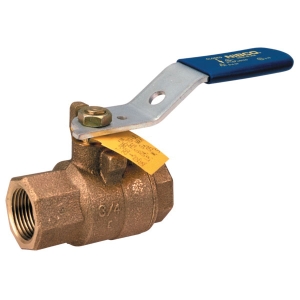

Nibco T-585-70-UL Bronze Standard Lever Handle 2-Piece Full-Port Ball Valve, 3/4 IN, FNPT

Manufacturer: NIBCO
Brand: NIBCO
MGPN: 075T58570ULBV
MPN: NL95028
CPN:

UPC: 039923678522
Min. Order Qty: 1
Qty. Interval: 1
Availability:
See All Availability

Price:
Qty Add To Cart
My Favorites
Add / Remove CPN
888-756-4110 888-756-4110

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

The Nibco® bronze ball valve is UL listed for natural and LP gas and flammable fluid applications. The 2-piece valve provides bubble-tight shut-off at 250 PSI.

2-Piece Full-Port Ball Valve, Series/Model: Model T-585-70-UL, Nominal Size: 3/4 IN, Connection Type: FNPT, Pressure Rating: 250 PSI LP Gas Non-Shock, Bronze Body Material, Standard Lever Handle Operator Type, Handle Material: Carbon Steel, Stem Material: Silicon Bronze, Trim Material: Bronze Trim, Brass Ball, Packing Material: PTFE, Brass Packing Gland, Material Standard: Body: ASTM B584, Ball: ASTM B124/B16, Stem: ASTM B371, Gland: ASTM B16, Material Specification: Body: UNS C84400, Ball: UNS C37700/C36000, Stem: UNS C69430, Gland: UNS C36000, Finish/Color: Zinc Plated/Clear Chromate Plastisol Coated Handle, Industry Standards: MSS-SP-110 Compliant, CSA Certified To ANSI/ASME B16.33 And CGA 3.16, UL And US Listed, 2.94 IN Width, Lead Free: No, Other Physical Dimension: 2-1/4 IN Inlet Center To Top Of Handle

Item Name	:	Ball Valve
Type	:	2-Piece, Full-Port
Series/Model	:	Model T-585-70-UL
Nominal Size	:	3/4 IN
Connection Type	:	FNPT
Pressure Rating	:	250 PSI LP Gas Non-Shock
Body Material	:	Bronze
Operator Type	:	Standard Lever Handle
Handle Material	:	Carbon Steel
Stem Material	:	Silicon Bronze
Trim Material	:	Bronze Trim, Brass Ball
Packing Material	:	PTFE
Gland Material	:	Brass Packing
Material Standard	:	Body: ASTM B584, Ball: ASTM B124/B16, Stem: ASTM B371, Gland: ASTM B16
Material Specification	:	Body: UNS C84400, Ball: UNS C37700/C36000, Stem: UNS C69430, Gland: UNS C36000
Finish/Color	:	Zinc Plated/Clear Chromate Plastisol Coated Handle
Industry Standards	:	MSS-SP-110 Compliant, CSA Certified To ANSI/ASME B16.33 And CGA 3.16, UL And US Listed
Width	:	2.94 IN
Lead Free	:	No
Other Physical Dimension	:	2-1/4 IN Inlet Center To Top Of Handle
Weight	:	1.330 LB

Valve pressure rating 250 PSI/17.2 BAR non-shock LP gas per UL842
Full port
Chrome-plated brass ball, silicon bronze stem
Blow-out proof stem
Standard lever handle, zinc plated, plastisol coated
Threaded end connections
Dezincification-resistant
Use in U.S. drinking water applications is prohibited after January 3, 2014

Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nibco_125NIBBRMS_Catalog.pdf
Instruction/Installation Manual https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nibco_075TFP600RG00828_Instruction_Installation_Manual.pdf
Specification Sheet https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nibco_315NIB050T58570ULLLASBY_Specification_Sheet.pdf
Warranty Information https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nibco_125NIBBRMS_Warranty_Information.pdf
