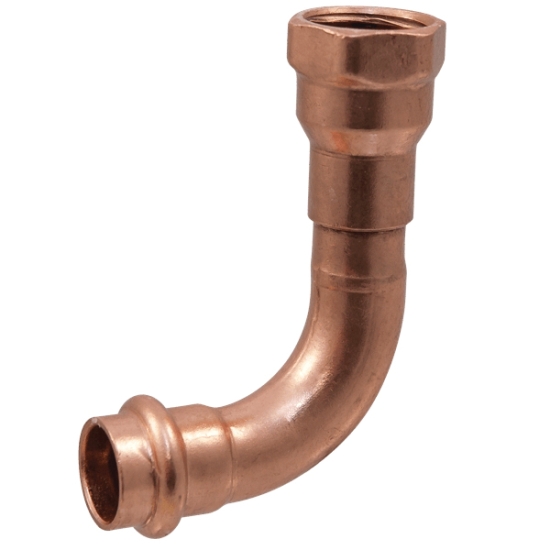

3/4 X 1/2 NIBCO PRESS PC607-3 P X F 90

The NIBCO® Press System® copper 90 DEG female threaded elbow features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The elbow has a press connection and a female NPT thread connection. The fitting provides a method of changing the pipeline direction by 90 DEG between a press connection and a threaded connection.

NIBCO Press System® 90 DEG Elbow, Press System®, 90 DEG Elbow, Series/Model: PC607-3, 3/4 X 1/2 IN Nominal, Connection Type: Press X FNPT, Wrot Copper, Material Standard: ASTM B75, Material Specification: UNS C12200, 200 PSI (CWP) Maximum Pressure, -20 To 250 DEG F, Industry Standards: CSA MSE 13 And PS-117, NSF/ANSI/CAN-61, UPC Listed, Other Physical Dimension: 2-27/32 X 2 IN Center To End, Wrot: Yes, Lead Free: Yes, 0.321 LB Weight

• Operating pressure 200 PSI CWP
• Temperature range -20 to 250 DEG F
• Lead-free
• Dezincification-resistant
• ASTM B75 alloy C12200 copper
• NSF/ANSI/CAN-61
• Third party certified to UPC
• Third party certified to the performance requirements of CSA MSE 13 and PS-117

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Inst.pdf
• MSDS Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/031CULT90_MSDS.pdf
