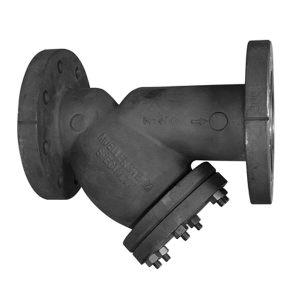

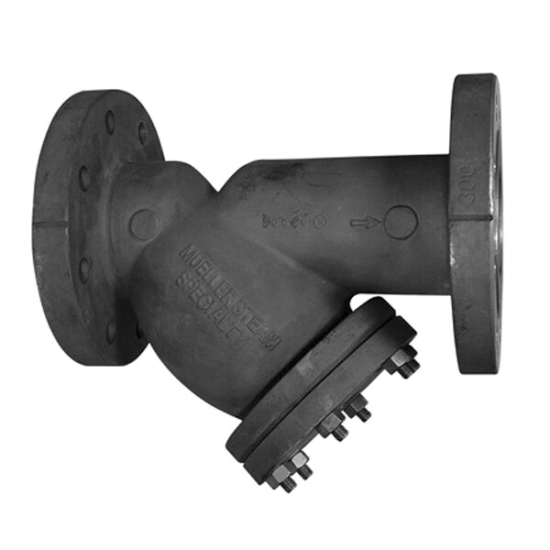

3 MUELLER #782 FLG C/S 300#

Series 782 cast carbon steel or alloy steel flanged end Y strainers are used to strain foreign matter from pipelines and provide economical protection for costly pumps, meters, valves, and other similar mechanical equipment. These are especially critical where weld debris is often present in the pipeline. They are well suited for long service in high pressure and temperature applications. Class 300.

Mueller Steam Specialty Y-Strainer, Y-Strainer, Series/Model: Model 782CS, 3 IN Nominal, Connection Type: Flanged, 0.062 IN Perforated Screen, 1 IN Blow-Off Port, Pressure Class: Class 300, 740 PSI At -20 To 100 DEG F, 300 PSI At 850 DEG F, Carbon Steel Body, 304 Stainless Steel Screen, 316 Stainless Steel Tanged Graphite Gasket Seal, Material Standard: Body And Cover: ASTM A216 Grade WCB, 12 IN Width, Other Physical Dimension: 7 IN Inlet Center To Cap End, Additional Specifications: Blow-Off Port Type: NPT, 49.000 LB Weight

• Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
• Designed for high pressure and high temperature services
• Cast carbon steel, carbon-moly, or chrome-moly body and heavy-gauge 304 stainless steel screen that is locked securely in place to stop sediment bypass

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUECK71AHH3H4_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUESTR111_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUESTR78210_Spec.pdf
