3 MUELLER #758 FLG BLK 125

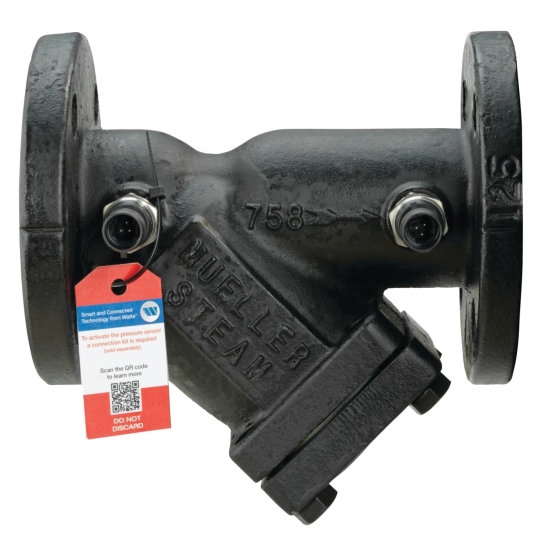

Series 758 cast iron flanged Y strainers are used to strain foreign matter from pipelines and provide economical protection for costly pumps, meters, valves, and other similar mechanical equipment. This class 125 Y strainer has a cast iron body and 304 stainless steel screens. Features tapered seats in both the body and cover flange retain screen and prevent particle bypass.

Mueller Steam Specialty Y-Strainer, Y-Strainer, Series/Model: Model 758-N, 3 IN Nominal, Connection Type: Flanged, 0.062 IN Perforated Screen, 1 IN Blow-Off Port, Pressure Class: Class 125, 200 PSI At -20 To 150 DEG F, 125 PSI At 450 DEG F, Cast Iron Body, 304 Stainless Steel Screen, Non-Asbestos Gasket Seal, Material Standard: Body And Cover: ASTM A126 Class B, Hex Head Cap Screws: SAE J429 Grade 5, Finish/Color: Black, 10-1/8 IN Width, Other Physical Dimension: 7 IN Inlet Center To Cap End, Domestic/Import: Import, Additional Specifications: Blow-Off Port Type: NPT, 34.000 LB Weight

• Cast iron body and 304 stainless steel screen
• Tapered seats in both the body and cover flange retain screen and prevent particle bypass
• Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
• A connection kit is required to activate the pressure monitoring capability and collect data from the sensors (kit sold separately)
• Connection kits are available for BMS systems (RS-485 MODBUS or BACnet) or alternate cellular communication gateway is available if no BMS is present (alert only, no streaming)

• Brochure/Catalog Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUECK71AHH3H4_Broc.pdf
• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUESTR111_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/MUESTR75810_Spec.pdf
