1-1/4 MUELLER #582 SW CARBO

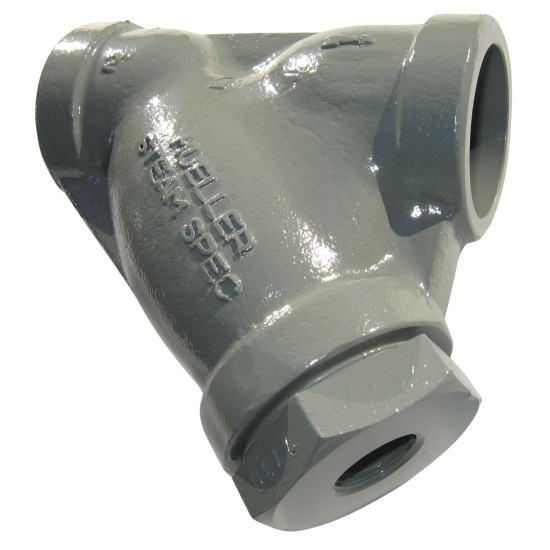

Mueller Steam Specialty Model 582CS-N M6726436 Y-Strainer, 1-1/4 IN, Socket Weld, Carbon Steel Body
- Manufacturer: Watts
- Brand: Mueller Steam Specialty
- MGPN: MUE STR 582 1-1/4
- MPN: M6726436
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Used to strain foreign matter from pipelines and provide economical protection for costly pumps, meters, valves, and other similar mechanical equipment. These are especially critical where weld debris is often present in the pipeline. Well suited for long service in high pressure and temperature applications. Class 600.
Mueller Steam Specialty Y-Strainer, Y-Strainer, Series/Model: Model 582CS-N, 1-1/4 IN Nominal, Connection Type: Socket Weld, 0.062 IN Perforated Screen, 3/4 IN Blow-Off Port, Pressure Class: Class 600, 1480 PSI At -20 To 100 DEG F, 1015 PSI At 750 DEG F, Carbon Steel Body, 304 Stainless Steel Screen, Graphite Filled Spiral Wound Gasket Seal, Material Standard: Body And Cap: ASTM A216 Grade WCB, Studs: ASTM A193 B7, Nuts: ASTM A194 2H, 4-15/16 IN Width, Other Physical Dimension: 4 IN Inlet Center To Cap End, Domestic/Import: Import, Additional Specifications: Blow-Off Port Type: NPT, 6.800 LB Weight
| Item Name | : | Y-Strainer |
| Series/Model | : | Model 582CS-N |
| Nominal Size | : | 1-1/4 IN |
| Connection Type | : | Socket Weld |
| Screen Size | : | 0.062 IN Perforated |
| Blow-Off Port Size | : | 3/4 IN |
| Pressure Class | : | Class 600 |
| Pressure Rating | : | 1480 PSI At -20 To 100 DEG F, 1015 PSI At 750 DEG F |
| Body Material | : | Carbon Steel |
| Screen Material | : | 304 Stainless Steel |
| Seal Material | : | Graphite Filled Spiral Wound Gasket |
| Material Standard | : | Body And Cap: ASTM A216 Grade WCB, Studs: ASTM A193 B7, Nuts: ASTM A194 2H |
| Width | : | 4-15/16 IN |
| Other Physical Dimension | : | 4 IN Inlet Center To Cap End |
| Domestic/Import | : | Import |
| Additional Specifications | : | Blow-Off Port Type: NPT |
| Weight | : | 6.800 LB |
- Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
- Machined seats in body and cap lock the screen in place to prevent sediment bypass and facilitate accurate reseating after servicing
- Cast carbon steel body and 304 stainless steel screen that is locked securely in place to stop sediment bypass
