3 MUELLER #353-1/2M CC BRON

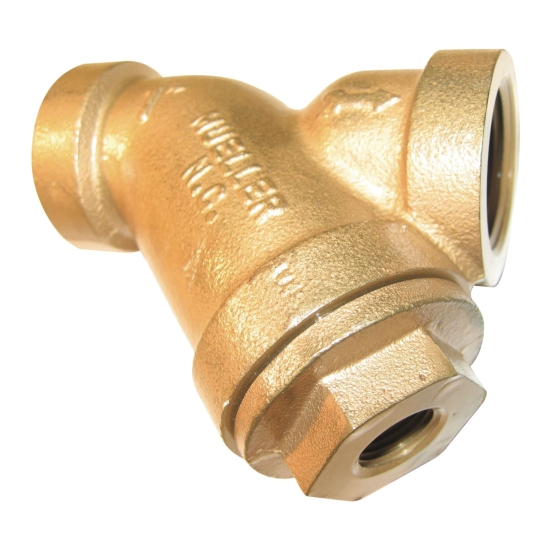

Mueller Steam Specialty Model 353-1/2M MUE STR 353-1/2 3 Y-Strainer, 3 IN, Solder, 175 PSI (WOG) At 250 DEG F
- Manufacturer: Watts
- Brand: Mueller Steam Specialty
- MGPN: MUE STR 353-1/2 3
- MPN: MUE STR 353-1/2 3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Used to strain foreign matter from pipelines and provide economical protection for costly pumps, meters, valves, and other similar mechanical equipment.
Mueller Steam Specialty Y-Strainer, Y-Strainer, Series/Model: Model 353-1/2M, 3 IN Nominal, Connection Type: Solder, 0.062 IN Perforated Screen, Pressure Class: Class 125, 175 PSI (WOG) At 250 DEG F, Cast Bronze Body, 304 Stainless Steel Screen, Metal Filled Graphite Gasket Seal, Material Standard: Body And Cap: ASTM B62, Screen: ASTM A240, Additional Specifications: Blow-Off Port Type: NPT
| Item Name | : | Y-Strainer |
| Series/Model | : | Model 353-1/2M |
| Nominal Size | : | 3 IN |
| Connection Type | : | Solder |
| Screen Size | : | 0.062 IN Perforated |
| Pressure Class | : | Class 125 |
| Pressure Rating | : | 175 PSI (WOG) At 250 DEG F |
| Body Material | : | Cast Bronze |
| Screen Material | : | 304 Stainless Steel |
| Seal Material | : | Metal Filled Graphite Gasket |
| Material Standard | : | Body And Cap: ASTM B62, Screen: ASTM A240 |
| Additional Specifications | : | Blow-Off Port Type: NPT |
- Used to strain foreign matter from pipelines and provide economical protection for pumps and other mechanical equipment
- Self-cleaning by opening the plug or valve connected to the blow off outlet
- Cast bronze body and 304 stainless steel basket strainer with a machined seat that eliminates particle bypass
