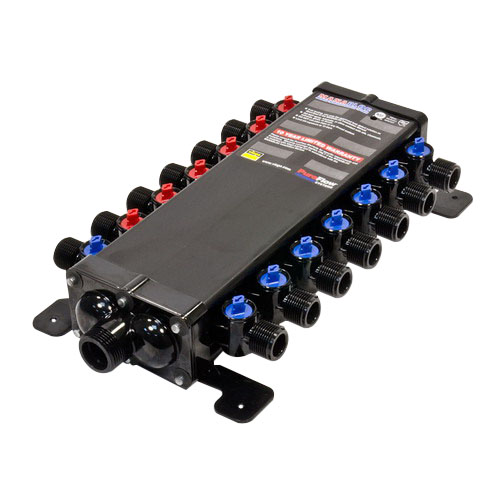

14 PORT 1/2 PEX PRESS MANABLOC

PEX Manabloc, Series/Model: Model V5030ZL, Nominal Size: 1/2 IN, Connection Type: Press, Pressure Rating: 100 PSI, Temperature Rating: 180 DEG F, Flow Rate: 31 GPM, Polysulfone Body Material, Material Standard: ASTM F877, Number Of Outlets: 8 Cold, 6 Hot, Industry Standards: NSF Certified, ANSI/NSF Standards 14 and 61, CSA B137.5 Certified, 8 IN Width, 3 IN Depth, 15-15/16 IN Height, Other Physical Dimension: 1 IN Male NPSM Main Inlet/Outlet, 1-1/4 IN Main Waterway, Additional Specifications: Pressure Drop: 3.4 PSI, 2.5 GPM

• Bronze PEX press MANABLOCs provide a home-run distribution manifold for the plumbing system
• These MANABLOCs utilize either 1/2 IN distribution lines
• Each MANABLOCs comes factory pre-assembled with color coded hot and cold ports
• All bronze PEX press MANABLOCs include press connections, drill templates, instruction guide, faceplate and port labels
• Zero lead

Application: For use in hot and cold potable water distribution systems in single and multifamily dwellings, as well as multiple-unit structures

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/V97003_Broc.pdf
• Installation Instruction https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/V38143_Inst.pdf
• Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/N_V38143_Spec.pdf
