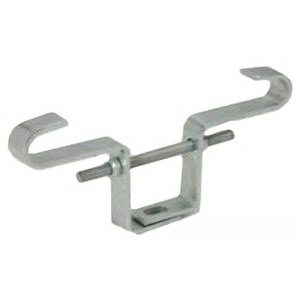

B3055 STEEL BEAM CLAMP PLN 3/4 BOLT
Plain Steel Center Load Wide Clamp, 3/4-10 UNC, 1500 LB
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: B305507512
- MPN: B3055-3/4X12PLN
- UPC: 78101173059
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Center Load Wide Beam Clamp, Series/Model: Series B3055, Rod Size: 3/4-10 UNC, 12 IN Jaw Opening, Material: Steel, Industry Standards: MSS ANSI/MSS-SP-69 And SP-58 Type 21, Federal Specification WW-H-171E And A-A-1192A Type 21, Finish/Color: Plain, Other Physical Dimension: 4-1/2 IN Center Of Cross Bolt To Bottom Of Side Of Hanger Rod Nut
| IMPORTANT NOTICE | : | For the latest specifications and to make sure this item conforms to your needs, call 888-756-4110 or email [email protected] |
| Item Name | : | Beam Clamp |
| Type | : | Center Load, Wide |
| Series/Model | : | Series B3055 |
| Rod Size | : | 3/4-10 UNC |
| Maximum Load | : | 1500 LB |
| Jaw Opening | : | 12 IN |
| Material | : | Steel |
| Industry Standards | : | MSS ANSI/MSS-SP-69 And SP-58 Type 21, Federal Specification WW-H-171E And A-A-1192A Type 21 |
| Finish/Color | : | Plain |
| Other Physical Dimension | : | 4-1/2 IN Center Of Cross Bolt To Bottom Of Side Of Hanger Rod Nut |
| Additional Specifications | : | Steel Size: 3/8 X 2 IN, PHD 625 |
| Weight | : | 6.550 LB |
- Bolt and nut included
Application: Designed for attaching a hanger rod to be centered under beam flanges
