790 WATER VENT

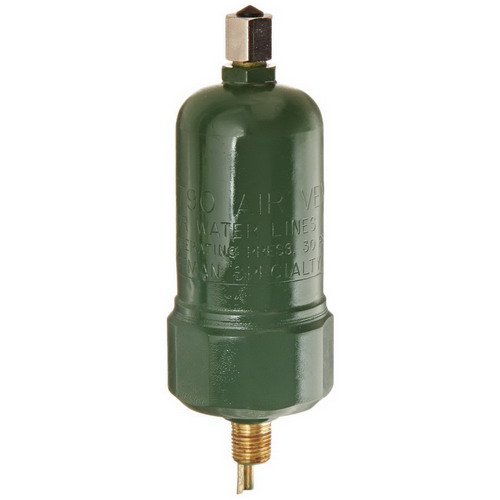

Hoffman 790 Steel Water Vent Valve, 1/8 IN, MNPT
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 790V
- MPN: 401479
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Water Vent Valve, Series/Model: Model 790, Nominal Size: 1/8 IN, Connection Type: MNPT, Pressure Rating: 30 PSIG, Material: Steel Body, Temperature Rating: 140 - 240 DEG F, 1-1/2 IN Width, 4-1/4 IN Height, Additional Specifications: Mount: Straight, System Type: Hydronic (Water), Pressure Rating: 30 PSIG
| Item Name | : | Water Vent Valve |
| Series/Model | : | Model 790 |
| Nominal Size | : | 1/8 IN |
| Connection Type | : | MNPT |
| Pressure Rating | : | 30 PSIG |
| Material | : | Steel Body |
| Temperature Rating | : | 140 - 240 DEG F |
| Width | : | 1-1/2 IN |
| Height | : | 4-1/4 IN |
| Additional Specifications | : | Mount: Straight, System Type: Hydronic (Water), Pressure Rating: 30 PSIG |
- Safety drain connection for discharging moisture
- Fitting and ferrule for 3/16 IN OD tubing
- Telescopic siphon tube
Application: For removing air from convectors, baseboard and wall radiation
