6 IPS HDPE SDR 11 815 SERIES D2513 BYS W/HDPE RATED-D2513 24 IN OF STEELSERIES 815

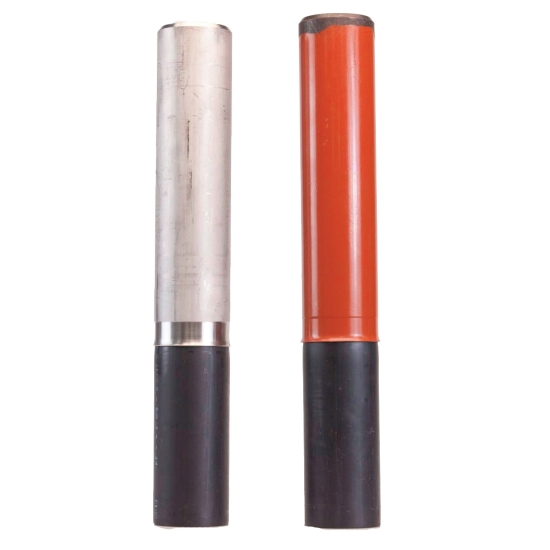

HDPE/Steel SDR 11 Weld-On Transition Fitting, 6 IN IPS
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 600240081511YS
- MPN: 400727
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Transition Fitting |
| Type | : | Weld-On |
| Series/Model | : | Series 815 |
| Nominal Size | : | 6 IN IPS |
| Wall Thickness | : | SDR 11 |
| Inside Diameter | : | 5 X 5.349 IN |
| Outside Diameter | : | 6-5/8 IN |
| Length | : | 28 IN |
| Material | : | HDPE/Steel |
| Material Standard | : | ASTM D2513, ASTM D3350, ASTM F714 |
| Maximum Pressure | : | 200 PSI |
| Temperature Rating | : | 73.4 DEG F |
| Industry Standards | : | NSF/ANSI 61 Certified |
The Poly-Cam weld-on transition is a multi-level mechanical transition fitting. The polyethylene or pipe-quality copolymer material are hydraulically compressed into the transition fitting. Relaxation of the pipe creates a seal to prevent leakage. Under pressure, the internal pressure within the pipe increases the sealing surface area on the barb. Under zero internal pressure, the compression and tensional strain created by the compression of the multi-level barbs are greater than the stress created by relaxation and/or thermal expansion and contraction. As the internal pressure increases, the connection between the pipe material and transition fitting increases.
Applications: For gas and water
