4 X 3 300 RF RED SLIP ON FLG CS

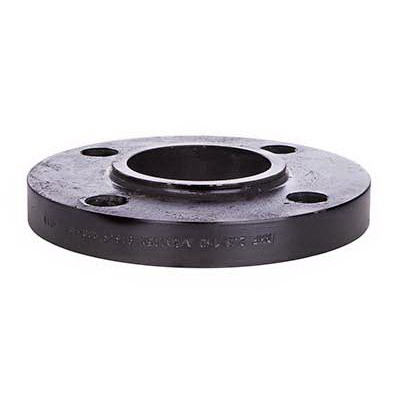

Class 300 Forged Steel Raised Face Reducing Slip-On Flange, 4 X 3 IN, 10 IN OD, Domestic
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 40030030FSRSOFK
- MPN: 40030030FSRSOFK
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Reducing Slip-On Flange, Class 300 Pressure Class, Nominal Size: 4 X 3 IN, Outside Diameter: 10 IN, Nominal Bore Size: 4.57 IN, Thickness: 1-1/4 IN, Raised Face, 7.88 IN Bolt Circle Diameter, Number Of Bolts: 8, Bolt Hole Diameter: 0.88 IN, 5-3/4 IN Hub Diameter, 1.88 IN Length Through Hub, Material: Forged Steel, Material Standard: ASTM A105/A105M, Industry Standards: ASME B16.5, Other Physical Dimension: 6.19 IN Diameter Of Raised Face, Domestic/Import: Domestic
| Item Name | : | Reducing Slip-On Flange |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 4 X 3 IN |
| Outside Diameter | : | 10 IN |
| Nominal Bore Size | : | 4.57 IN |
| Thickness | : | 1-1/4 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 7.88 IN |
| Number Of Bolts | : | 8 |
| Bolt Hole Diameter | : | 0.88 IN |
| Hub Diameter | : | 5-3/4 IN |
| Length Through Hub | : | 1.88 IN |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A105/A105M |
| Industry Standards | : | ASME B16.5 |
| Other Physical Dimension | : | 6.19 IN Diameter Of Raised Face |
| Domestic/Import | : | Domestic |
