3 300 316SS RF WELDNECK FLG - STD BORE

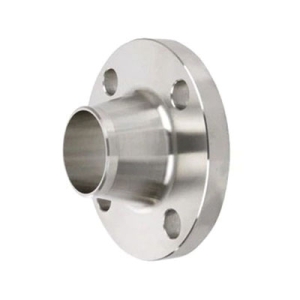

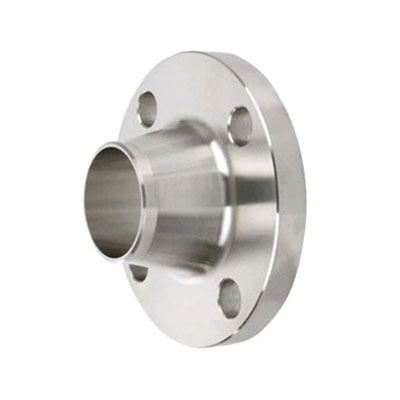

Class 300 316 Stainless Steel Raised Face Weld Neck Flange, 3 IN, 8-1/4 IN OD, Standard Bore
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 300306SWNF
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Weld Neck Flange |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 3 IN |
| Outside Diameter | : | 8-1/4 IN |
| Thickness | : | 1.06 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 6.62 IN |
| Number Of Bolts | : | 8 |
| Bolt Hole Diameter | : | 0.88 IN |
| Bore Schedule | : | STD |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A182/ASME SA182 |
| Industry Standards | : | ASME/ANSI B16.5 |
| Other Physical Dimension | : | 3-1/2 IN Weld Neck Diameter, 5 IN Diameter Of Raised Face |
