2 316SS 150 THRD SH PLUG

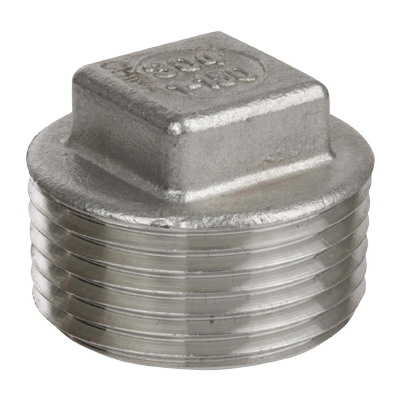

Class 150 316 Stainless Steel Casting Square Plug, 2 IN, MNPT
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 200156STP
- MPN: 200156STP
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Square Plug, Class 150 Pressure Class, Nominal Size: 2 IN, Connection Type: MNPT, Material: 316 Stainless Steel, Material Standard: ASTM A351, Method Of Manufacturer: Cast, Length: 1-5/8 IN, Maximum Pressure: 300 PSI CWP/150 PSI SWP, Industry Standards: MSS-SP-114, ASME B16.11 And ASME B16.14, ASME B1.20.1, Other Physical Dimension: 1-5/16 IN Nominal Width Across Flat, 7/8 IN Thread Length
| Item Name | : | Square Plug |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 2 IN |
| Connection Type | : | MNPT |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A351 |
| Method Of Manufacturer | : | Cast |
| Length | : | 1-5/8 IN |
| Maximum Pressure | : | 300 PSI CWP/150 PSI SWP |
| Industry Standards | : | MSS-SP-114, ASME B16.11 And ASME B16.14, ASME B1.20.1 |
| Other Physical Dimension | : | 1-5/16 IN Nominal Width Across Flat, 7/8 IN Thread Length |
