2 1500 FS RF WELDNECK FLG

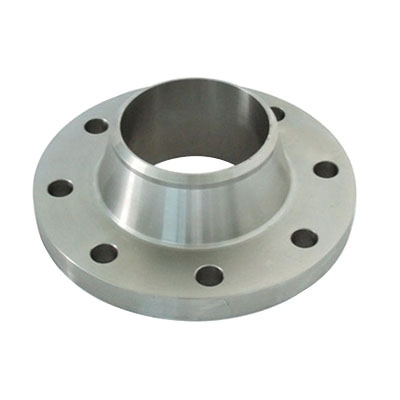

Class 1500 Forged Steel Raised Face Weld Neck Flange, 2 IN, 8-1/2 IN OD, Domestic
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 200150FSWNF
- MPN: 820-020-000
- Min. Order Qty: 1
- Qty. Interval: 1
- Availability: 2
-
Price: $61.24
| Item Name | : | Weld Neck Flange |
| Pressure Class | : | Class 1500 |
| Nominal Size | : | 2 IN |
| Outside Diameter | : | 8-1/2 IN |
| Thickness | : | 1-1/2 IN |
| Face Type | : | Raised |
| Bolt Circle Diameter | : | 6-1/2 IN |
| Number Of Bolts | : | 8 |
| Bolt Hole Diameter | : | 1 IN |
| Hub Diameter | : | 4.12 IN |
| Length Through Hub | : | 4 IN |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A105/ASME SA105 |
| Maximum Pressure | : | 3705 PSI |
| Temperature Rating | : | -20 To 100 DEG F |
| Industry Standards | : | ASME B16.5 |
| Other Physical Dimension | : | 2.38 IN Diameter Of Weld Neck |
| Domestic/Import | : | Domestic |
