1-1/2 34834 800 FS THRD GATE VALVE SV34834TE014

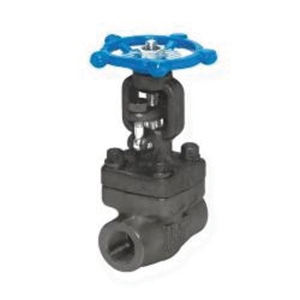

Class 800 Forged Carbon Steel Handwheel Reduced Port Bolted Bonnet Gate Valve, 1-1/2 IN, FNPT
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 150FSTEGVS
- MPN: SV34834TE014
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Gate Valve |
| Type | : | Reduced Port, Bolted Bonnet |
| Series/Model | : | Series 34834 |
| Nominal Size | : | 1-1/2 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 1975 PSI |
| Pressure Class | : | Class 800 |
| Temperature Rating | : | -20 To 100 DEG F |
| Body Material | : | Forged Carbon Steel |
| Operator Type | : | Handwheel |
| Handle Material | : | Carbon Steel |
| Stem Material | : | 410 Stainless Steel |
| Trim Material | : | API #8 |
| Packing Material | : | Graphite |
| Gland Material | : | Forged Carbon Steel |
| Seat Material | : | Stellite |
| Seal Material | : | 304 Stainless Steel/Graphite |
| Width | : | 4.72 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 9-1/2 IN Inlet Center To Top Of Handle |
| Additional Specifications | : | Flow Co-Efficient (Cv): 100 |
