1 W104 BRZ UL/FM 175 OS-Y RS THRD GATE VALVE

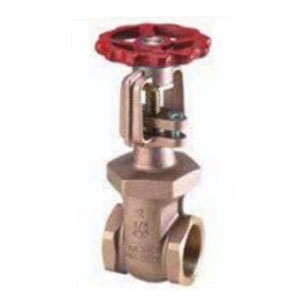

Bronze Handwheel Rising Stem OSY Gate Valve, 1 IN, Threaded
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 100W104GV
- MPN: W104-100
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Gate Valve |
| Type | : | Rising Stem, Outside Screw And Yoke |
| Series/Model | : | Model W104 |
| Nominal Size | : | 1 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 175 PSI |
| Body Material | : | Bronze |
| Operator Type | : | Handwheel |
| Handle Material | : | Cast Iron |
| Stem Material | : | Brass |
| Trim Material | : | Bronze Disc |
| Packing Material | : | Graphite |
| Gland Material | : | Bronze |
| Material Specification | : | Body: C83600 |
| Industry Standards | : | C/US UL Listed, FM Approved, ANSI/AWWA C550, AWWA C515 Specification, NSF/ANSI 372 Certified |
| Width | : | 80 MM |
| Lead Free | : | No |
| Other Physical Dimension | : | 25 mm Flange Diameter, 163 mm Inlet Center To Top Of Handle |
- Fire Main Approved
- Bronze B62 rising stem
- Over bonnet design
