3/4 HOFFMAN FT075H F-T STEAM TRAP

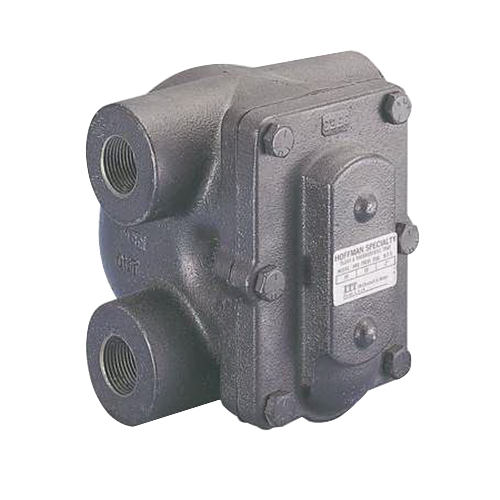

Hoffman BEAR TRAP® FT075H-3 Cast Iron 4-Port Float And Thermostatic Steam Trap, 3/4 IN, NPT, 175 PSIG
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 075FT075H
- MPN: 404204
- UPC: 751875034934
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Bear Trap® 4-Port Float And Thermostatic Steam Trap, Series/Model: Model FT075H-3, Nominal Size: 3/4 IN, Connection Type: NPT, Pressure Rating: 175 PSIG, 75 PSI Seat Differential, 0.166 IN Orifice, Cast Iron Body Material, Industry Standards: Meets Military Specification WW-T-696-E Type VI, Class 1 - 5, Temperature Rating: 406 DEG F, Length: 5-1/2 IN, Other Physical Dimension: 5-19/32 IN Height X 6-1/2 IN Depth, Additional Specifications: Capacity: 1450 LB/HR
| Sub Brand | : | Bear Trap® |
| Item Name | : | Float And Thermostatic Steam Trap |
| Type | : | 4-Port |
| Series/Model | : | Model FT075H-3 |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 175 PSIG, 75 PSI Seat Differential |
| Orifice | : | 0.166 IN |
| Body Material | : | Cast Iron |
| Industry Standards | : | Meets Military Specification WW-T-696-E Type VI, Class 1 - 5 |
| Temperature Rating | : | 406 DEG F |
| Length | : | 5-1/2 IN |
| Other Physical Dimension | : | 5-19/32 IN Height X 6-1/2 IN Depth |
| Additional Specifications | : | Capacity: 1450 LB/HR |
| Weight | : | 11.700 LB |
- Stainless steel internal components
- Resistant to water hammer and corrosion
- Below condensate level seat design prevents steam leakage
- Rugged thermostatic element eliminates air binding
- Stainless steel valve pin and seat
- Stainless steel float
- Stainless steel lever assembly
- Stainless steel cage and thermal element thermostatic air vent
- Grade 5 cover bolts
- Maximum body design pressure 250 PSIG
- Universal 4 port tappings, (2 inlets, 2 outlets) that provide versatility to allow easy piping and system monitoring
Application: For commercial and industrial heating application such as steam main drip traps, unit heaters, tank coils
