1/2 B1015A BUCKET TRAP

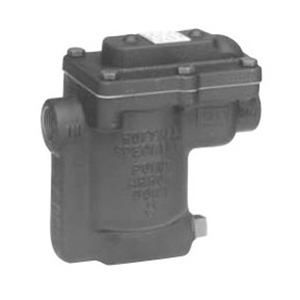

Hoffman BEAR TRAP® B1015A-2 Cast Iron Inverted Bucket Steam Trap, 1/2 IN, NPT, 250 PSIG
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 050b1015A
- MPN: 404300
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Bear Trap® Inverted Bucket Steam Trap, Series/Model: Model B1015A-2, Nominal Size: 1/2 IN, Connection Type: NPT, Pressure Rating: 250 PSIG, 15 PSI Seat Differential, 1/4 IN Orifice, Cast Iron Body Material, Industry Standards: Meets Military Specification WW-T-696-E Type I, Style B, Class 1-7, Temperature Rating: 450 DEG F, Length: 6-15/16 IN, Other Physical Dimension: 7-1/4 IN Height X 3-13/16 IN Depth, Additional Specifications: Capacity: 1700 LB/HR
| Sub Brand | : | Bear Trap® |
| Item Name | : | Bucket Steam Trap |
| Type | : | Inverted |
| Series/Model | : | Model B1015A-2 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 250 PSIG, 15 PSI Seat Differential |
| Orifice | : | 1/4 IN |
| Body Material | : | Cast Iron |
| Industry Standards | : | Meets Military Specification WW-T-696-E Type I, Style B, Class 1-7 |
| Temperature Rating | : | 450 DEG F |
| Length | : | 6-15/16 IN |
| Other Physical Dimension | : | 7-1/4 IN Height X 3-13/16 IN Depth |
| Additional Specifications | : | Capacity: 1700 LB/HR |
| Weight | : | 11.000 LB |
- Removable covers for easy in line service
- Erosion resistant covers
- Resistant to moderate water hammer
- Stainless steel internal components, (hardened) valve pin and seat, bucket, lever assembly
- Optional built in thermic vent for faster heating
- Optional built in strainer to reduce the number of piping connections
- Grade 5 steel cover bolts
Application: For a wide range of industrial application including steam mains, laundry and dry cleaning plants, food processing and those that require a lift in the discharge lines
