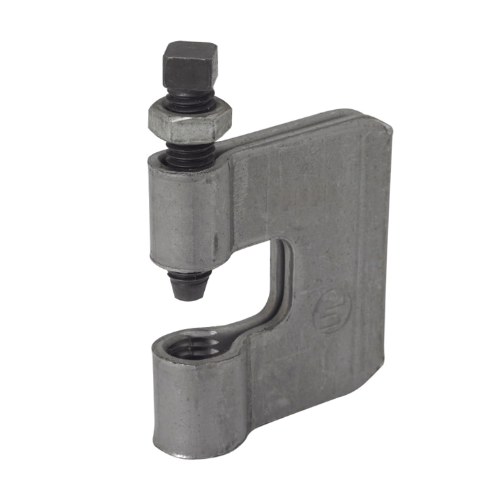

3/8 B351L C-CLAMP W/LOCKNUT
Plain Low Carbon Steel C-Type Clamp With Locknut, 3/8-16 UNC, 300 LB
- Manufacturer: Macomb Group Approved
-
Brand:
Macomb Group Approved™
MACOMB GROUP APPROVED™ identifies a product sold by The Macomb Group that complies with the form, fit, and function of the products responsive to your search request.
- MGPN: 037B351L
- MPN: B351L-3/8
- UPC: 78101157242
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
C-Type Beam Clamp With Locknut, Series/Model: Series B351L, Rod Size: 3/8-16 UNC, Conduit/Pipe Size: 4 IN, 3/4 IN Jaw Opening, Material: Low Carbon Steel, Industry Standards: MSS ANSI/SP-69 And SP-58 Type 23, Federal Specification A-A-1192A Type 23, US/UL Listed, FM Approved, Finish/Color: Plain, Length: 2-3/8 IN, 2-1/4 IN Width, Other Physical Dimension: 7/8 IN Jaw Depth
| IMPORTANT NOTICE | : | For the latest specifications and to make sure this item conforms to your needs, call 888-756-4110 or email [email protected] |
| Item Name | : | C-Type Beam Clamp With Locknut |
| Series/Model | : | Series B351L |
| Rod Size | : | 3/8-16 UNC |
| Conduit/Pipe Size | : | 4 IN |
| Maximum Load | : | 300 LB |
| Jaw Opening | : | 3/4 IN |
| Material | : | Low Carbon Steel |
| Industry Standards | : | MSS ANSI/SP-69 And SP-58 Type 23, Federal Specification A-A-1192A Type 23, US/UL Listed, FM Approved |
| Finish/Color | : | Plain |
| Length | : | 2-3/8 IN |
| Width | : | 2-1/4 IN |
| Other Physical Dimension | : | 7/8 IN Jaw Depth |
| Additional Specifications | : | ERICO 2000037PL, PHD 250 |
| Weight | : | 0.380 LB |
- The hanger rod should make contact with the beam flange to ensure full engagement
- Hardened steel cup point set screw and locknut
Application: For attaching hanger rod to bottom flange of a beam
