90 GAL SHIELD CONDENSING COMMERCIAL WATER HEATER OLD MODEL SNR200-100

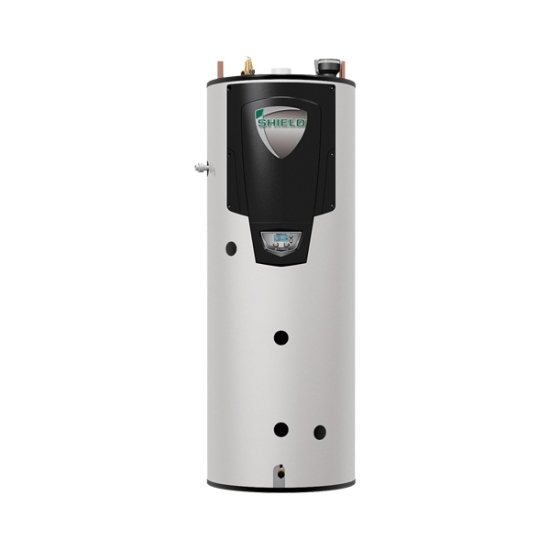

Lochinvar Shield™ SNR201 100 Commercial Natural Gas Condensing Water Heater, 90 GAL, 199999 BTU/HR
- Manufacturer: Lochinvar LLC
- Brand: Lochinvar
- MGPN: SNR201100
- MPN: SNR201 100
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Shield™ Commercial Condensing Gas Water Heater, Capacity: 90 GAL, Natural Gas Fuel, 199999 BTU/HR BTU Rating, Material: Stainless Steel Heat Exchanger, Glass-Lined Steel Tank, First Hour Recovery: 305 GAL, Recovery: 233 GPH At 100 DEG Rise, Thermal Efficiency: 96%, Ignition Type: Direct Spark, Maximum Pressure: 150 PSI, 1/2 IN Gas Connection, Water Connection: 1-1/2 IN, 3 IN Vent Size, 28 IN Diameter, 75-1/2 IN Height, 59-1/2 IN Height To Valve Connection, Industry Standards: AHRI Certified, CSA Low Lead Content Certified, Energy Star Rated, ASME Certified "HLW" Stamped
| Sub Brand | : | Shield™ |
| Item Name | : | Condensing Gas Water Heater |
| Type | : | Commercial |
| Capacity | : | 90 GAL |
| Fuel Type | : | Natural Gas |
| BTU Rating | : | 199999 BTU/HR |
| Material | : | Stainless Steel Heat Exchanger, Glass-Lined Steel Tank |
| First Hour Recovery | : | 305 GAL |
| Recovery | : | 233 GPH At 100 DEG Rise |
| Thermal Efficiency | : | 96% |
| Ignition Type | : | Direct Spark |
| Maximum Pressure | : | 150 PSI |
| Gas Connection | : | 1/2 IN |
| Water Connection | : | 1-1/2 IN |
| Vent Size | : | 3 IN |
| Diameter | : | 28 IN |
| Height | : | 75-1/2 IN |
| Height To Valve Connection | : | 59-1/2 IN |
| Industry Standards | : | AHRI Certified, CSA Low Lead Content Certified, Energy Star Rated, ASME Certified "HLW" Stamped |
- The SHIELD™ commercial gas water heater is a complete water heating system beautifully packaged in a small footprint
- High condensing efficiency
- 5:1 turndown ratio
- Design prevents lime scale buildup
- SMART CONTROL™ operating control with LCD display and soft key buttons
Brochure
