MGR15/QA ACTUATOR W/O GEAR

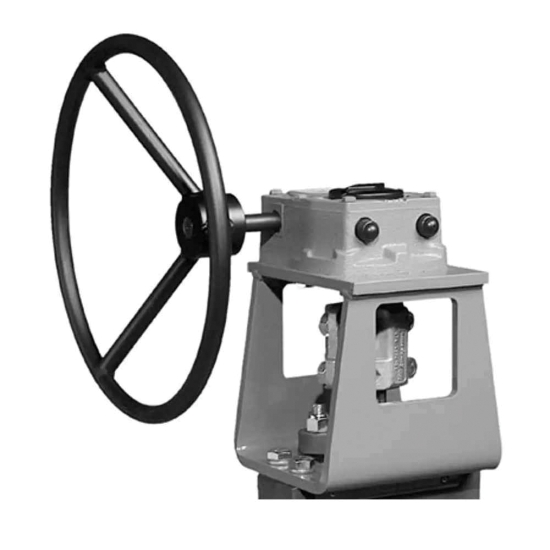

Jamesbury™ Series MGR MGR15/QA Valve Actuator, 46 MM Air Port, Cast Iron Body
- Manufacturer: Valmet
- Brand: Jamesbury
- MGPN: J GEAR OPR MGR15/QA
- MPN: MGR15/QA
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Jamesbury MGR series manual gear actuator is a hand wheel operated worm gear actuator with high efficiency for greater output torque. Can be more convenient and require less space than lever handles.
Jamesbury™ Valve Actuator, Valve Actuator, Series/Model: Series MGR, 46 MM Air Port, 0 - 90 DEG Spring Stroke, 1995 FT-LB Output Torque, Cast Iron Body, -20 To 121 DEG C
| Item Name | : | Valve Actuator |
| Series/Model | : | Series MGR |
| Air Port Size | : | 46 MM |
| Spring Stroke | : | 0 - 90 DEG |
| Output Torque | : | 1995 FT-LB |
| Body Material | : | Cast Iron |
| Temperature Rating | : | -20 To 121 DEG C |
- Cast iron body with metal gears and bearings
- ISO 5211 mounting pattern
- Fully enclosed and weather-proof
- Factory lubricated for their lifetime
- Wide range of sizes and torque outputs
- Adjustable stops for both open and closed positions
- Highly visible position indication pointer
