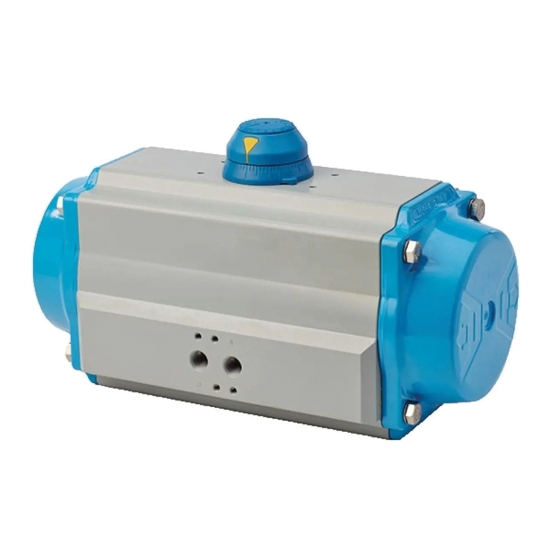

VPVL350SR4/5BD SPRING RETURN ACTUATOR

Jamesbury™ Valv-Powr™ VPVL Pneumatic Actuator, 4.53 IN Bore Diameter, 30 - 116 PSI, Actuation Time: 0.8 SEC Opening, 1.1 SEC Closing, 72.6 CU-IN Opening, 43.8 CU-IN Swept Air Volume, 54.4 FT-LB Output Torque, Finish/Color: PTFE-Coated, Industry Standards: ATEX Certified, IP67, IP68M, ISO 5211 Certified, -40 - 176 DEG F, 11.97 IN Length, 5.35 IN Width, 5.71 IN Height, Additional Specifications: Supply Media: Air/Nitrogen, Weight: 20.5 LB, Action: Spring Return

• Jamesbury™ Valv-Powr VPVL Series pneumatic actuator for fast, efficient and economical operation of rotary valves
• Modular design utilizing same body and end caps for both double acting and spring return versions
• Compact and lightweight
• High cycle life with low friction bearings on all rotating and sliding surfaces
• ISO 5211 mounting pattern
• Machined gear teeth provide longest life and smoother operation
• Safety contained springs prevent hazards of inadvertent ejection during maintenance
• Corrosion-resistant with PTFE-coated body, polyester-coated end caps and stainless steel fasteners
• Adjustable stops for both open and closed positions

• Installation Instruction Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/JACTVPVL350SR45BD_Inst.pdf
• Specification Name https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/JACTVPVL350SR45BD_Spec.pdf
