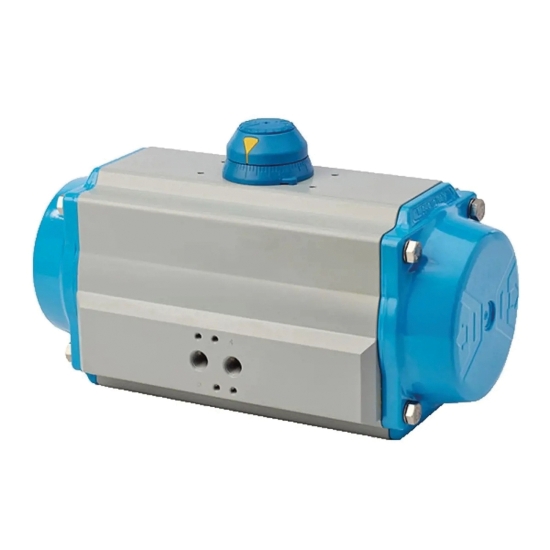

VPVL100SR4/5BD SPRING RETURN ACTUATOR
Jamesbury™ Valv-Powr™ VPVL MA0126193 Pneumatic Actuator, 2.48 IN Bore, 30 - 116 PSI, 0.3 SEC Opening, 0.4 SEC Closing
- Manufacturer: Valmet
- Brand: Jamesbury
- MGPN: J ACT VPVL100SR45BD
- MPN: MA0126193
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Jamesbury™ Valv-Powr™ VPVL Pneumatic Actuator, 2.48 IN Bore Diameter, 30 - 116 PSI, Actuation Time: 0.3 SEC Opening, 0.4 SEC Closing, 9.8 CU-IN Opening, 6 CU-IN Swept Air Volume, 7.4 FT-LB Output Torque, Finish/Color: PTFE-Coated, Industry Standards: ATEX Certified, IP67, IP68M, ISO 5211 Certified, -40 - 176 DEG F, 6.04 IN Length, 3.33 IN Width, 3.35 IN Height, Additional Specifications: Supply Media: Air/Nitrogen, Weight: 3.7 LB, Action: Spring Return
| Sub Brand | : | Valv-Powr™ |
| Item Name | : | Pneumatic Actuator |
| Series/Model | : | VPVL |
| Bore Diameter | : | 2.48 IN |
| Pressure Rating | : | 30 - 116 PSI |
| Actuation Time | : | 0.3 SEC Opening, 0.4 SEC Closing |
| Air Volume | : | 9.8 CU-IN Opening, 6 CU-IN Swept |
| Output Torque | : | 7.4 FT-LB |
| Finish/Color | : | PTFE-Coated |
| Industry Standards | : | ATEX Certified, IP67, IP68M, ISO 5211 Certified |
| Temperature Rating | : | -40 - 176 DEG F |
| Length | : | 6.04 IN |
| Width | : | 3.33 IN |
| Height | : | 3.35 IN |
| Additional Specifications | : | Supply Media: Air/Nitrogen, Weight: 3.7 LB |
| Action | : | Spring Return |
- Jamesbury™ Valv-Powr VPVL Series pneumatic actuator for fast, efficient and economical operation of rotary valves
- Modular design utilizing same body and end caps for both double acting and spring return versions
- Compact and lightweight
- High cycle life with low friction bearings on all rotating and sliding surfaces
- ISO 5211 mounting pattern
- Machined gear teeth provide longest life and smoother operation
- Safety contained springs prevent hazards of inadvertent ejection during maintenance
- Corrosion-resistant with PTFE-coated body, polyester-coated end caps and stainless steel fasteners
- Adjustable stops for both open and closed positions
