1/2 JAMESBURY THD 4000 STD

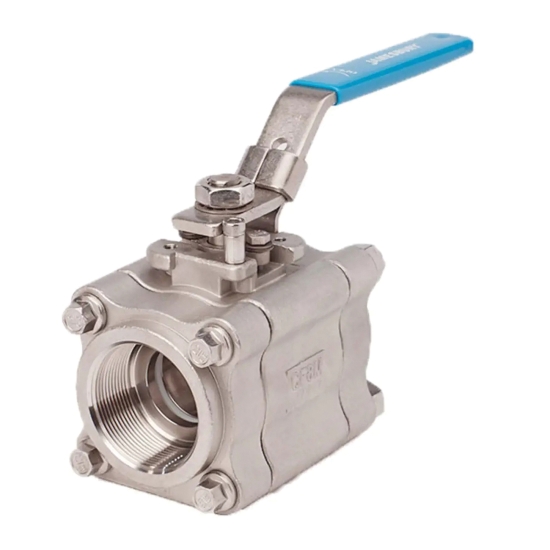

Jamesbury™ 4000 MA0003186 Ball Valve, 1/2 IN, Threaded, Stainless Steel, 2500 PSI
- Manufacturer: Valmet
- Brand: Jamesbury
- MGPN: J 4A-3600XTB 1/2
- MPN: MA0003186
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Jamesbury™ Series 4000 ball valves offer the three most desirable attributes of high-quality valves, exceptional performance, great versatility and economical cost. This valve line includes both standard port alves (to 2-1/2 IN (DN 65)) and full port valves (to 2 IN (DN 50)) with three available end connections threaded end, socket weld and butt weld.
Jamesbury™ 4000 3-Piece Standard Port Ball Valve, 1/2 IN Nominal, Threaded Connection, 2500 PSI, Pressure Class: Class 800, 500 DEG F, 1/2 IN Opening, Stainless Steel Body, Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Trim, Fluoropolymer Seat, Graphite/TFM Seal, Material Standard: ASTM A351 Type CF8M, ASTM A193 Grade B8M, ASTM 194 Grade 8, Industry Standards: MSS-SP25, MSS-SP55, 2.06 IN Width, Other Physical Dimension: 2.59 IN Inlet To Outlet Length, 2.36 IN Top To Inlet Center
| Brand Name | : | Jamesbury™ |
| Item Name | : | Ball Valve |
| Type | : | 3-Piece, Standard Port |
| Series/Model | : | 4000 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 2500 PSI |
| Pressure Class | : | Class 800 |
| Temperature Rating | : | 500 DEG F |
| Opening Size | : | 1/2 IN |
| Body Material | : | Stainless Steel |
| Handle Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | Stainless Steel |
| Seat Material | : | Fluoropolymer |
| Seal Material | : | Graphite/TFM |
| Material Standard | : | ASTM A351 Type CF8M, ASTM A193 Grade B8M, ASTM 194 Grade 8 |
| Industry Standards | : | MSS-SP25, MSS-SP55 |
| Width | : | 2.06 IN |
| Other Physical Dimension | : | 2.59 IN Inlet To Outlet Length, 2.36 IN Top To Inlet Center |
- Robust engineering design
- Self-relieving seat technology
- Patented stem seal technology
- Very long service life
- Bi-directional in hazardous media service
- Low fugitive emissions
- Bubble tight shut-off
- Automatable
