SAMMY SXP35 XPRESS

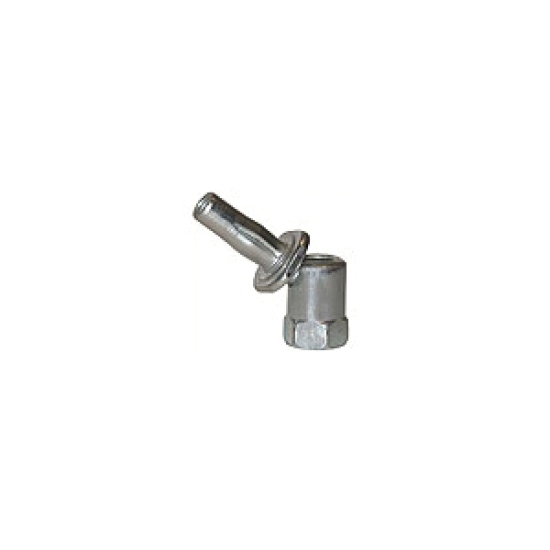

ITW Buildex Sammys X-Press® Swivel™ SXP 35 8295922 Threaded Rod Anchor, 08-03-2016 Rod, 3/8 IN Screw, 1 IN OAL, Steel
- Manufacturer: ITW Buildex
- Brand: ITW Buildex
- MGPN: SAMMY XPRESS SXP35
- MPN: 8295922
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
ITW Buildex Threaded Rod Anchor, Sub Brand: Sammys X-Press® Swivel™, Item Name: Threaded Rod Anchor, Series/Model: SXP 35, 08-03-2016 Rod, 3/8 IN Screw, 1 IN Overall Length, Maximum Load: 1558 LB (89 DEG Off Vertical Ultimate Pullout), 1675 LB (16 GA Vertical Ultimate Pullout), 635 LB (FM), 1250 LB (UL), AF End-Drilled Head, Steel, Finish/Color: Electro-Zinc, 0.059 IN (UL), 0.029 IN (FM) Minimum Thickness, 1/8 IN Maximum Thickness, Mounting: Vertical, Industry Standards: E245248, EX15565 And EX5098, FM 3031269 Approved, UL Listed, Other Physical Dimension: 25/64 IN Hole Size
| Sub Brand | : | Sammys X-Press® Swivel™ |
| Item Name | : | Threaded Rod Anchor |
| Series/Model | : | SXP 35 |
| Rod Size | : | 08-03-2016 |
| Screw Size | : | 3/8 IN |
| Overall Length | : | 1 IN |
| Maximum Load | : | 1558 LB (89 DEG Off Vertical Ultimate Pullout), 1675 LB (16 GA Vertical Ultimate Pullout), 635 LB (FM), 1250 LB (UL) |
| Head Type | : | AF End-Drilled |
| Material | : | Steel |
| Finish/Color | : | Electro-Zinc |
| Minimum Thickness | : | 0.059 IN (UL), 0.029 IN (FM) |
| Maximum Thickness | : | 1/8 IN |
| Mounting | : | Vertical |
| Industry Standards | : | E245248, EX15565 And EX5098, FM 3031269 Approved, UL Listed |
| Other Physical Dimension | : | 25/64 IN Hole Size |
- The Sammy® X-Press swivel allows you to hang plumb in extreme roof pitches 89 DEG in z-purlin, 45 DEG in metal deck for 12/12 pitch
- Installs in seconds with Sammy® X-Press It® tool, saving time and installation costs
- Use in applications where access to the back of the installed fastener is prohibited, metal-roof deck, tubular steel or vapor barrier fabric
- Less jobsite material needed
- No retaining nut required
- Provides design flexibility
- Assembled in USA
