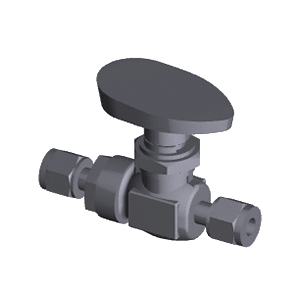

1/4 HOKE 3000 PSI GYROLOK CONN BALL VALVE 316SS/TFE/OVAL HANDLE
Hoke® GYROLOK® Ultramite™ TL 316 Stainless Steel Oval Handle Uni-Directional High-Cycle Zero-Leak Ball Valve, 1/4 IN
- Manufacturer: Crane Co
- Brand: Hoke
- MGPN: 7022G4YTL
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Sub Brand | : | GYROLOK®, Ultramite™ |
| Item Name | : | Ball Valve |
| Type | : | Uni-Directional, High-Cycle, Zero-Leak |
| Series/Model | : | Series TL |
| Nominal Size | : | 1/4 IN |
| Connection Type | : | Gyrolok |
| Pressure Rating | : | 3000 PSIG At 70 DEG |
| Temperature Rating | : | -40 To 350 DEG F |
| Body Material | : | 316 Stainless Steel |
| Operator Type | : | Oval Handle |
| Handle Material | : | Nylon |
| Stem Material | : | 316 Stainless Steel |
| Packing Material | : | PTFE |
| Seat Material | : | PTFE |
| Seal Material | : | Graphite-Filled PTFE/Elgiloy® |
| Width | : | 3-1/16 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 1-3/4 IN Inlet Center To Top Of Handle |
| Additional Specifications | : | Flow Co-Efficient (Cv): 0.8 |
TL series valves can be ordered with welded end fittings to prevent accidental disassembly or with gasketed end fittings, if valve rebuild becomes necessary.
- Compensates for wear and thermal cycling with zero leakage, providing excellent durability and reliability
- Ensures leak-tight performance over entire pressure range simplifying ball valve specification and installation, saving time and expense
- Prevents static discharge for added safety
- Quick on/off simplifies operation and saves time
- Directional handle provides quick visual indication of orifice, improves operator efficiency and safety
- Special high tolerance NPT thread
Applications: For high pressure test stands, sampling lines, instrument lines, analyser labs
