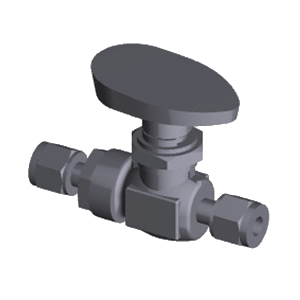

1/4 HOKE GYROLOK NEEDLE VALVE
Hoke® GYROLOK® 3700 316 Stainless Steel Integral Bonnet Globe Pattern Needle Valve, 1/4 IN, Tube
- Manufacturer: Crane Co
- Brand: Hoke
- MGPN: 3712G4Y
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Additional Specifications | : | Flow Co-Efficient (Cv): 0.35 |
| Body Material | : | 316 Stainless Steel |
| Connection Type | : | Tube |
| Item Name | : | Needle Valve |
| Lead Free | : | No |
| Nominal Size | : | 1/4 IN |
| Other Physical Dimension | : | 2-1/8 IN Inlet Center To Top Of Handle, 1-7/16 IN Handle Length |
| Packing Material | : | TFE/316 Stainless Steel Wafers |
| Pressure Rating | : | 5000 PSIG At 70 DEG F |
| Series/Model | : | Series 3700 |
| Stem Material | : | 316 Stainless Steel |
| Sub Brand | : | GYROLOK® |
| Temperature Rating | : | -65 To 450 DEG F |
| Type | : | Integral Bonnet, Globe Pattern |
| Width | : | 2-3/8 IN |
Offered in four different body materials, this group of valves can handle a wide range of general purpose liquid and gas applications. Six types of stem tips are available, including two styles of vee-points.
- Color-coded handles are available for identifying system fluids
- All models can be ordered for panel mounting
- All models can be panel mounted without packing disruption
- Packing can be adjusted without removal from panel
- Special high tolerance NPT thread
- Integral bonnet provides differential thread pitch between stem threads and packing nut thread preventing accidental stem removal
- A choice of PCTFE, metal, vee-point, blunt vee-point, or regulating stem tips
- Dyna-Pak packing provides a leak-tight seal with low operating torque in deep vacuum or high pressure applications
- All valves are tested for bubble-tight leakage at both seat and packing
Applications: For instrument air lines, sampling, gas chromatography, test stands, cylinder valves
