1/8 VENT RELIEF VALVE VRV-125SS-B-65

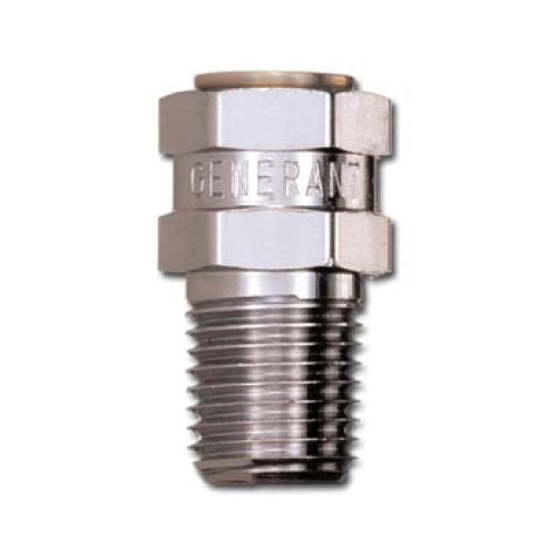

Generant VRV VRV-125SS-B-65 Vent Relief Valve, 1/8 IN, NPT, Stainless Steel, 65 PSIG, 260 SCFH
- Manufacturer: Generant
- Brand: Generant
- MGPN: GENERANT VRV-125SS-B-65
- MPN: VRV-125SS-B-65
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
A compact, highly accurate, direct acting pressure relief valve. Factory preset to desired crack pressure and flow specifications. Internal adjustment provides tamper-proof safety against inadvertent pressure changes. Available vent to atmosphere or inline configurations in brass, aluminum and 316 stainless steel. Valves feature a quad ring seal which provides for extreme accuracy and repeatability with a narrow reseal band. Optional deflector cap increases flow capacity and provides for deflection of discharge.
Generant Vent Relief Valve, Stainless Steel Body, NPT Connection, 260 SCFH Flow Rate, 1.1 IN Height, Item Name: Vent Relief Valve, Material Standard: ASTM A479, 1/8 IN Nominal, 65 PSIG, Buna-N Seal, Series/Model: VRV, -40 To 250 DEG F, 0.69 IN Width, Additional Specifications: Orifice Size: 0.187 IN
| Additional Specifications | : | Orifice Size: 0.187 IN |
| Body Material | : | Stainless Steel |
| Connection Type | : | NPT |
| Flow Rate | : | 260 SCFH |
| Height | : | 1.1 IN |
| Item Name | : | Vent Relief Valve |
| Material Standard | : | ASTM A479 |
| Nominal Size | : | 1/8 IN |
| Pressure Rating | : | 65 PSIG |
| Seal Material | : | Buna-N |
| Series/Model | : | VRV |
| Temperature Rating | : | -40 To 250 DEG F |
| Width | : | 0.69 IN |
- Accurate and repeatable cracking pressure
- 100% factory preset and tested
- Zero leakage to 95 to 98% of set pressure
- Tamper-proof adjustment
- Excellent reseat performance
- Compact design
