2 FLOWTEK TRIAD SP32 SOCKET WELD STD PORT 3-PC LIVE LOADED BALL VALVE

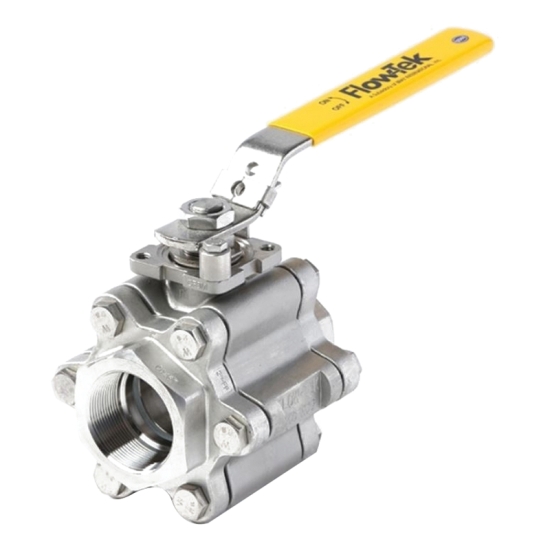

FLOW-TEK SP32 Stainless Steel 3-Piece Standard Port Live Loaded Ball Valve, 2 IN, Socket Weld
- Manufacturer: FLOW-TEK Inc
- Brand: Flow-Tek
- MGPN: 200FLOSP32BV
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Ball Valve |
| Type | : | 3-Piece, Standard Port, Live Loaded |
| Series/Model | : | Series SP32/Triad |
| Nominal Size | : | 2 IN |
| Connection Type | : | Socket Weld |
| Pressure Rating | : | 2200 PSI (WOG) |
| Temperature Rating | : | -50 To 550 DEG F |
| Body Material | : | Stainless Steel |
| Stem Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Ball |
| Packing Material | : | Graphite |
| Material Standard | : | Body: ASTM A351 Grade CF8M, Ball: ASTM A351 Grade CF8M, Stem: ASTM A479 Type316 |
| Industry Standards | : | ASME B16.11, ASME B16.34 Class 600, API 598, MSS SP-72 |
| Width | : | 5.04 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 4.29 IN Inlet Center To Top Of Handle, 10.43 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 120, Torque Rating: 477 IN-LB |
| Brand | : | FLOW-TEK |
| Firesafe | : | Yes |
- Flow-Tek's Triad series ball valves feature live loaded stem seals and a redundant body seal design. Available in full and standard port models, these rugged, high pressure 3-piece valves are ideal for process, severe service, high temperature, and high cycle applications
