3/4 THRD 3PC SS FP METAL SEAT, 2200 WOG, CF8M BODY, CF8M CHROME CARBIDE BALL AND SEAT, 17-4PH STEM, GRAPHITE STEM SEAL BALL VALVE W/LOCKING LEVER

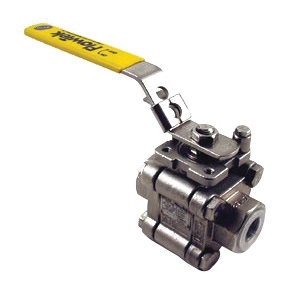

FLOW-TEK FP31/Triad Class 600 316 Stainless Steel Manual Locking Handle 3-Piece Full-Port Ball Valve, 3/4 IN, FNPT
- Manufacturer: FLOW-TEK Inc
- Brand: Flow-Tek
- MGPN: 075FP310433GLBV
- MPN: FP3104-3-3-G-L
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Ball Valve |
| Type | : | 3-Piece, Full-Port |
| Series/Model | : | Series FP31/Triad |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 2200 PSI (WOG) |
| Pressure Class | : | Class 600 |
| Temperature Rating | : | -50 To 550 DEG F |
| Body Material | : | 316 Stainless Steel |
| Operator Type | : | Manual Locking Handle |
| Handle Material | : | 304 Stainless Steel With Vinyl Sleeve |
| Stem Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Ball |
| Packing Material | : | Graphite |
| Gland Material | : | 304 Stainless Steel |
| Seat Material | : | Metal |
| Seal Material | : | Graphite |
| Material Standard | : | Body: ASTM A351 Grade CF8M, Ball: ASTM A351 Grade CF8M, Stem: ASTM A479 |
| Industry Standards | : | ASME B1.20.1, ASME B16.34, API 607, NACE MR0175 |
| Width | : | 3.31 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 3.03 IN Inlet Center To Top Of Handle, 6-1/2 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 55, Torque Rating: 130 IN-LB |
- Flow-Tek's Triad series ball valves feature live loaded stem seals and a redundant body seal design. Available in full and standard port models, these rugged, high pressure 3-piece valves are ideal for process, severe service, high temperature, and high cycle applications
