12" #C6710-75-2200-GV-NG W/37" EXTENSION

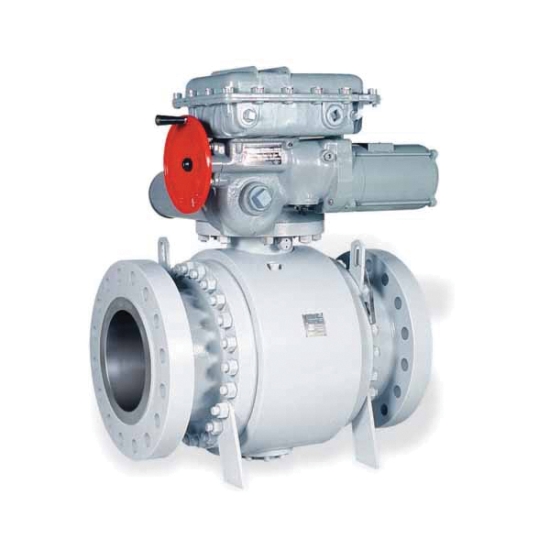

FET™ VLV BA CS C6710752200GVNG 12 W/37 EXT Ball Valve With 37 IN Extension, 12 IN, Weld
- Manufacturer: Forum Energy Technologies, Inc
- Brand: FET
- MGPN: VLV BA CS C6710752200GVNG 12 W/37 EXT
- MPN: VLV BA CS C6710752200GVNG 12 W/37 EXT
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
FET™ Ball Valve With 37 IN Extension, Type: 3-Piece, Fire Tested, Full-Port, Trunnion Bolted, Ball Valve With 37 IN Extension, 12 IN Nominal, Connection Type: Weld, Pressure Class: Class 150, Carbon Steel Body, Gear Operator, Carbon Steel Trim, Graphite Packing, Carbon Steel Gland, Glass Filled PTFE Seat, Viton A Seal, Material Standard: ASTM A105, Industry Standards: API 6D, API 598, API 607, API Q1, API 6FA, MSS SP-25, MSS SP-55, ASME/ANSI B16.34, ASME/ANSI B16.10, NACE Compliant, Domestic/Import: Domestic
| Item Name | : | Ball Valve With 37 IN Extension |
| Type | : | 3-Piece, Fire Tested, Full-Port, Trunnion Bolted |
| Nominal Size | : | 12 IN |
| Connection Type | : | Weld |
| Pressure Class | : | Class 150 |
| Body Material | : | Carbon Steel |
| Operator Type | : | Gear |
| Trim Material | : | Carbon Steel |
| Packing Material | : | Graphite |
| Gland Material | : | Carbon Steel |
| Seat Material | : | Glass Filled PTFE |
| Seal Material | : | Viton A |
| Material Standard | : | ASTM A105 |
| Industry Standards | : | API 6D, API 598, API 607, API Q1, API 6FA, MSS SP-25, MSS SP-55, ASME/ANSI B16.34, ASME/ANSI B16.10, NACE Compliant |
| Domestic/Import | : | Domestic |
- Our trunnion valves are manufactured using dual-rated A105
- All materials used by PBV follow the pre-qualified materials identified by NACE MR0175/ISO 15156
- All PBV trunnion ball valves include a secondary sealant injection system for stem seals
- PBV designs and manufactures all trunnion-mounted ball valves to facilitate only block and bleed applications in the closed position
- When a trunnion ball valve is in the closed position, media gets trapped in the body cavity
- Seats with soft sealing rings are automatically supplied as DPE designs
- DPE design means that if the upstream seat is damaged, the function of a ball valve is still secured by a downstream seat
- Locking devices are standard on all PBV trunnion ball valves
