3/4- 1 INCH SR113 REGULATOR

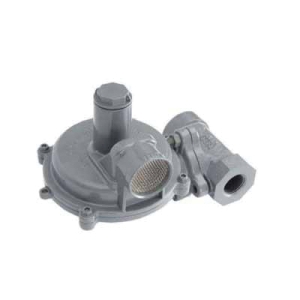

Elster American Meter SR113 Regulator, 3/4 - 1 IN, NPT, Cast Iron, Gray
- Manufacturer: Honeywell
- Brand: Elster American Meter
- MGPN: AM METER SR113 3/4-1
- MPN: SR113
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Elster American Meter Regulator, Type: Industrial, Regulator, 3/4 - 1 IN Nominal, Connection Type: NPT, 125 PSIG, 6 IN WC - 2 PSIG Pressure Adjustment, 2500 SCFH Flow Rate, -20 To 150 DEG F, Cast Iron Body, Reinforced Nylon Seal, Buna-N Diaphragm, Finish/Color: Gray, Industry Standards: ANSI B109.4 And CGA
| Item Name | : | Regulator |
| Type | : | Industrial |
| Nominal Size | : | 3/4 - 1 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 125 PSIG |
| Pressure Adjustment Range | : | 6 IN WC - 2 PSIG |
| Flow Rate | : | 2500 SCFH |
| Temperature Rating | : | -20 To 150 DEG F |
| Body Material | : | Cast Iron |
| Seal Material | : | Reinforced Nylon |
| Diaphragm Material | : | Buna-N |
| Finish/Color | : | Gray |
| Industry Standards | : | ANSI B109.4 And CGA |
- Variety of interchangeable orifices
- Capacities through 2500 SCFH
- Full capacity internal relief valve
- Molded diaphragm provides more precise outlet pressure control
