21.375 SLV SPLIT 3 VENT ALCLAD

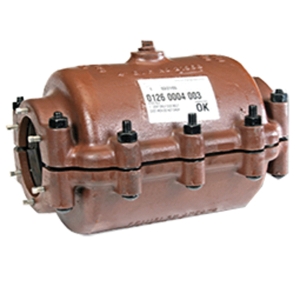

Pipeline maintenance personnel avoid pipeline shutdowns and expensive, temporary makeshift repairs by installing the Dresser style 126 bell-pack repair sleeve for a fast, economical and permanent repair. A sleeve of lighter weight and compact design, the style 126 provides maximum inside dimension clearance for repairing split cast iron bells and leaking mechanical joints. Built to rigid Dresser specifications, style 126 repair sleeves provide the time-proven features of the Dresser rubber-packed gasket sealing design. Side bolts enclosed within the sleeve body, are then tightened to compress side gaskets providing a complete, permanent leak-proof seal.

Dresser Bell Pack® Repair Sleeve, Bell Pack®, Repair Sleeve, Series/Model: Style 126, Pressure Class: 100 PSI, Material Standard: Vent Plug: ASTM A105, ASTM A126-42 Class A, Bolts And Nuts: AWWA C111/ANSI A21.11, Finish/Color: Fusion Bonded Epoxy Coated, 100 PSI Maximum Pressure, 21-3/8 IN Outside Diameter, Other Physical Dimension: 3 IN Vent Diameter, Additional Specifications: Suitable For Use With: Repair Of Broken Cast Iron Bell And Spigot Joints
