CHROME MONITOR 17 SERIES TUB/SHOWER TRIM

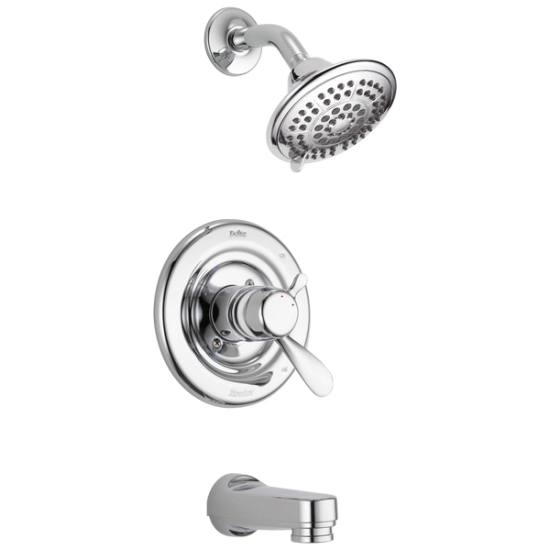

Delta Monitor® T17430 Chrome Plated Brass Wall Mount Tub And Shower Trim, 2 GPM
- Manufacturer: Delta Faucet
- Brand: Delta
- MGPN: T17430
- MPN: T17430
- UPC: 034449520065
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Spray settings include full Body spray fast massage spray full spray with massage, high efficiency spray, and pause.
Monitor® Tub And Shower Trim, 1 Handles, Flow Rate: 2 GPM At 80 PSI, 7.6 L/MIN At 550 KPA, Material: Brass, Finish/Color: Chrome Plated, Mounting: Wall, 5-1/4 IN Spout Reach, Valve Type: Single-Function Pressure Balance Cartridge, ADA Compliant: No, Industry Standards: ASME A112.18.1/CSA B125.1 Compliance, ASSE 1016 Compliance, Indicates Compliance To ICC/ANSI A117.1, EPA WaterSense Compliance, Meets Standards Set By Americans With Disabilities Act (ADA), Other Physical Dimension: 7-1/2 IN Diameter X 3-3/4 IN Shower Head Width X 6 IN Shower Arm Length
| Sub Brand | : | Monitor® |
| Item Name | : | Tub And Shower Trim |
| Series/Model | : | Series 17 |
| Number Of Handles | : | 1 |
| Flow Rate | : | 2 GPM At 80 PSI, 7.6 L/MIN At 550 KPA |
| Material | : | Brass |
| Finish/Color | : | Chrome Plated |
| Mounting | : | Wall |
| Spout Reach | : | 5-1/4 IN |
| Valve Type | : | Single-Function Pressure Balance Cartridge |
| ADA Compliant | : | No |
| Industry Standards | : | ASME A112.18.1/CSA B125.1 Compliance, ASSE 1016 Compliance, Indicates Compliance To ICC/ANSI A117.1, EPA WaterSense Compliance, Meets Standards Set By Americans With Disabilities Act (ADA) |
| Other Physical Dimension | : | 7-1/2 IN Diameter X 3-3/4 IN Shower Head Width X 6 IN Shower Arm Length |
- Pause feature reduces water to a trickle giving you space for shaving lathering and other shower tasks while maintaining your temperature settings
- Soft rubber Touch Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
- Monitor® pressure balance valve keeps water temperature within a safe 3.6 DEG F helping to protect you from sudden changes in hot or cold water pressure
- Lever handle controls on/off and adjusts volume, while the dial controls temperature
- Trim kit only, must order MultiChoice® Universal valve rough R10000 series separately to complete the unit
- Solid brass forged body
- Back-to-back installation capability
- Pull-down diverter tub spout
- Universal tub spout adapter allows for thread, sweat or slip-on installation
- Stem extension kit RP77992 can be ordered separately to allow for an additional 1-3/4 IN wall thickness
- WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
- Backed by delta faucet is lifetime limited warranty
Instruction/Installation Manual
