523LFHDF CP 4CC LAV FAUCET W/GRID STRAINER

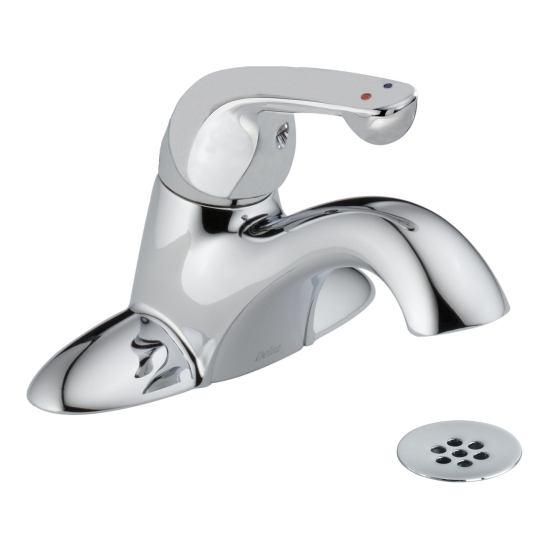

Delta 523LF-HDF Chrome Plated Solid Brass Manual Centerset Lavatory Faucet, 3/8 IN
- Manufacturer: Delta Faucet
- Brand: Delta
- MGPN: 523LFHDF
- MPN: 523LF-HDF
- UPC: 034449643931
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Delta is committed to supporting water conservation around the globe and has been recognized as WaterSense® manufacturer partner of the year IN 2011, 2013, and 2014.
Centerset Lavatory Faucet, Manual Operation, 1 Handles, Handle Type: Lever, 3/8 IN Inlet Size, Flow Rate: 1.5 GPM At 60 PSI, 5.7 L/MIN At 414 KPA, 3 Holes, 4 IN Faucet Centers, Material: Solid Brass, Finish/Color: Chrome Plated, Metal Pop-Up Drain, Mounting: Deck, 5 IN Spout Reach, 6-9/16 IN Spout Total Height, 1-11/16 IN Spout Height Deck To Aerator, Valve Type: DIAMOND Seal®, Flow Outlet Type: Aerator, ADA Compliant: Yes, Industry Standards: CSA Certified, UPC Listed, ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ICC/ANSI A117.1, EPA WaterSense, Other Physical Dimension: 4-13/16 IN Height X 6-7/8 IN Depth X 6-17/32 IN Width
| Item Name | : | Centerset Lavatory Faucet |
| Operation | : | Manual |
| Number Of Handles | : | 1 |
| Handle Type | : | Lever |
| Inlet Size | : | 3/8 IN |
| Flow Rate | : | 1.5 GPM At 60 PSI, 5.7 L/MIN At 414 KPA |
| Number Of Holes | : | 3 |
| Faucet Centers | : | 4 IN |
| Material | : | Solid Brass |
| Finish/Color | : | Chrome Plated |
| Drain Type | : | Metal Pop-Up |
| Mounting | : | Deck |
| Spout Reach | : | 5 IN |
| Spout Total Height | : | 6-9/16 IN |
| Spout Height Deck To Aerator | : | 1-11/16 IN |
| Valve Type | : | DIAMOND Seal® |
| Flow Outlet Type | : | Aerator |
| ADA Compliant | : | Yes |
| Industry Standards | : | CSA Certified, UPC Listed, ASME A112.18.1/CSA B125.1, ASME A112.18.2/CSA B125.2, ICC/ANSI A117.1, EPA WaterSense |
| Other Physical Dimension | : | 4-13/16 IN Height X 6-7/8 IN Depth X 6-17/32 IN Width |
- WaterSense® certification promotes water conservation
- Includes finished grid strainer
- 3-hole 4 IN installation
- Standard spout
Instruction/Installation Manual
