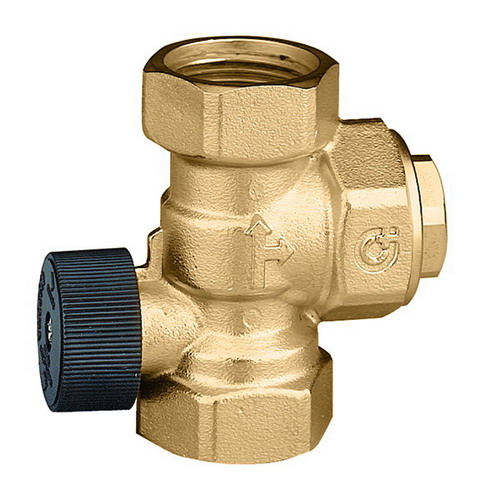

3/4 NPT FLOW CHECK VALVE

Anti-Thermosiphon Flow Check Valve, Series/Model: Series 510, Nominal Size: 3/4 IN, Connection Type: FNPT, Pressure Rating: 10 BAR, Temperature Rating: 5 - 110 DEG F, Brass Body Material, Seal Material: EPDM, 87 MM Width, 92 MM Height, Lead Free: No, Additional Specifications: Maximum Percentage of Glycol: 30%

• The anti-thermosiphon check valve prevents the natural circulation of water in systems where ambient temperature adjustment is carried out by a thermostat connected to the pump
• The anti-thermosiphon check valve allows water to reach the heat emitters only when the pump is running: when the pump is not running, the check valve is activated and the system remains separate from the heat generator
• The check valve function can be overridden using the corresponding knob and the valve can be used with straight or angled connections by moving the relevant cap
• PSU check valve, stainless steel spring, ABS cap knob, PTFE knob seal and EPDM stem seal

• Brochure/Catalog https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/502710A_broc.pdf
• Specification https://www.macombgroup.com//ASSETS/DOCUMENTS/ITEMS/EN/510502A_Spec.pdf
