1/2 300 FF ARAMID FIBER/NITRILE BDR GSK

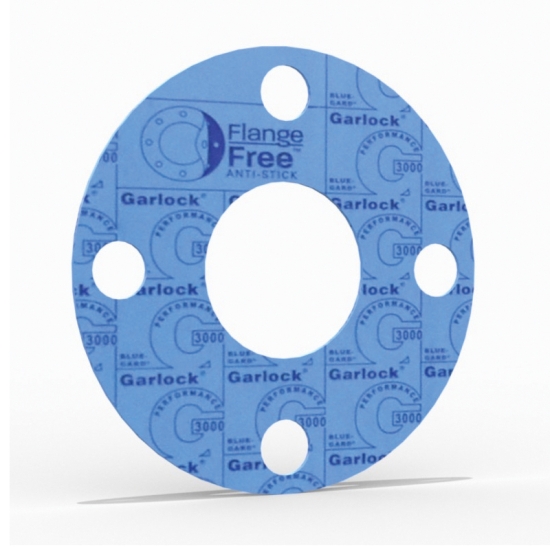

BLUE-GARD® Style 3000 37706-4290 Full Face Gasket, 1/2 IN, 0.844 IN ID, 3-3/4 IN OD, 1/16 IN THK, 4, 2-5/8 IN, Class 300
- Manufacturer: Garlock
- Brand: BLUE-GARD
- MGPN: GSK 4401 300 FF 1/16X1/2
- MPN: 37706-4290
- UPC: 191074191401
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The BLUE-GARD® Style 3000 compressed fiber gasketing is made with aramid fibers with an NBR binder. This gasket provides improved torque retention and drastically lowers emissions levels. It also cuts operational costs by reducing waste and energy consumption.
BLUE-GARD® Full Face Gasket, Item Name: Full Face Gasket, Series/Model: Style 3000, 1/2 IN Nominal, 0.844 IN Inside Diameter, 3-3/4 IN Outside Diameter, 1/16 IN Thickness, Bolt Holes: 4, 2-5/8 IN Bolt Circle Diameter, 5/8 IN Bolt Hole Diameter, Pressure Class: Class 300, Aramid Fiber/Nitrile Binder, Finish/Color: Blue, Industry Standards: ASME B16.5, 1000 PSI Maximum Pressure, -100 To 700 DEG F
| Item Name | : | Full Face Gasket |
| Series/Model | : | Style 3000 |
| Nominal Size | : | 1/2 IN |
| Inside Diameter | : | 0.844 IN |
| Outside Diameter | : | 3-3/4 IN |
| Thickness | : | 1/16 IN |
| Bolt Holes | : | 4 |
| Bolt Circle Diameter | : | 2-5/8 IN |
| Bolt Hole Diameter | : | 5/8 IN |
| Pressure Class | : | Class 300 |
| Material | : | Aramid Fiber/Nitrile Binder |
| Finish/Color | : | Blue |
| Industry Standards | : | ASME B16.5 |
| Maximum Pressure | : | 1000 PSI |
| Temperature Rating | : | -100 To 700 DEG F |
- Excellent sealability
- Improved torque retention
- Drastically lowered emissions levels
- Cuts operational costs through reduced waste, maintenance, stocked inventory, fluid loss and energy consumption
Installation Instruction Name
