1 150 PTFE LINED BLIND FLG

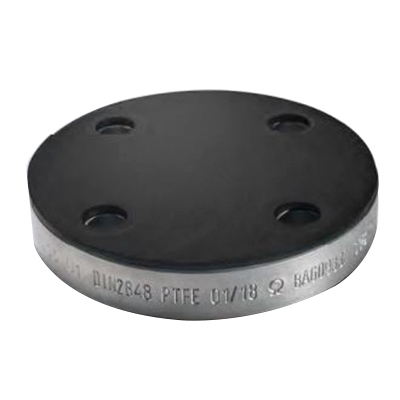

Baum America Corporation 110900 Class 150 Forged Steel PTFE Lined Blind Flange, 1 IN, 4-1/4 IN OD
- Manufacturer: Baum America Corporation
- Brand: Baum America Corporation
- MGPN: BAUM110900
- MPN: 110900
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Any piping needs cleaning connections and also additional connections. Blind flanges close these connections during regular operation.
| Item Name | : | Blind Flange |
| Type | : | PTFE Lined |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 1 IN |
| Outside Diameter | : | 4-1/4 IN |
| Bolt Circle Diameter | : | 3-1/8 IN |
| Number Of Bolts | : | 4 |
| Bolt Hole Diameter | : | 5/8 IN |
| Material | : | Forged Steel |
| Material Standard | : | ASTM A105, ASTM D638, ASTM F1545-15a |
| Maximum Pressure | : | 250 PSIG |
| Temperature Rating | : | 100 DEG F |
| Industry Standards | : | ISO 9001:2008 Certified, ASME B16.5 |
