ASHCROFT GAUGE

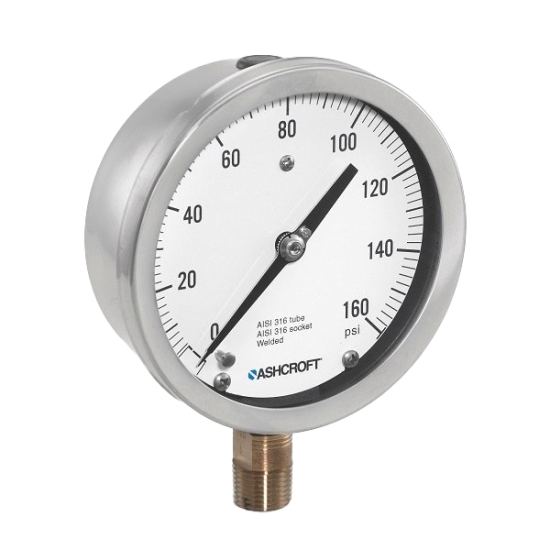

Ashcroft® Model 1009 451009A02L160# Pressure Gauge, 4-1/2 IN Dial, 0 - 160 PSI, 1/4 IN MNPT Lower, Glass Lens
- Manufacturer: Ashcroft Inc
- Brand: Ashcroft
- MGPN: GA451009AW02L 0-160
- MPN: 451009A02L160#
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Ashcroft® 1009 is an ASME style pressure gauge suitable for applications requiring a stainless steel case in a 4-1/2 IN size. The 1009 provides durability, reliability and performance with protective features for corrosive or other challenging process media applications.
Ashcroft® Pressure Gauge, Pressure Gauge, Series/Model: Model 1009, 4-1/2 IN Dial, 0 - 160 PSI Measuring, Units Of Measure: PSI, 1/4 IN MNPT Lower Connection, Plus/Minus 1% Of Span (ASME B40.100 Grade 1A) Accuracy, Aluminum Dial Face, 304 Stainless Steel Case, Glass Lens, Movement Material: 400 Stainless Steel, Phosphor Bronze Tube, Brass Socket, Filled With: Dry, Stem, Surface Mounting, -20 To 250 DEG F, 5.09 IN Length, 5.09 IN Width, 2.06 IN Depth, Industry Standards: ASME B40.100, CE Marked, CRN Approved, UKCA Approved, RoHS Compliant
| Item Name | : | Pressure Gauge |
| Series/Model | : | Model 1009 |
| Dial Size | : | 4-1/2 IN |
| Measuring Range | : | 0 - 160 PSI |
| Units Of Measure | : | PSI |
| Connection | : | 1/4 IN MNPT Lower |
| Accuracy | : | Plus/Minus 1% Of Span (ASME B40.100 Grade 1A) |
| Dial Face | : | Aluminum |
| Case Material | : | 304 Stainless Steel |
| Lens Material | : | Glass |
| Movement Material | : | 400 Stainless Steel |
| Tube Material | : | Phosphor Bronze |
| Socket Material | : | Brass |
| Filled With | : | Dry |
| Mounting | : | Stem, Surface |
| Temperature Rating | : | -20 To 250 DEG F |
| Length | : | 5.09 IN |
| Width | : | 5.09 IN |
| Depth | : | 2.06 IN |
| Industry Standards | : | ASME B40.100, CE Marked, CRN Approved, UKCA Approved, RoHS Compliant |
- Wide selection of pressure connections and pressures ranges
- Micrometer adjustable pointer
