3/4 76F-104-27A SS THRD BALL VALVE F.P.7

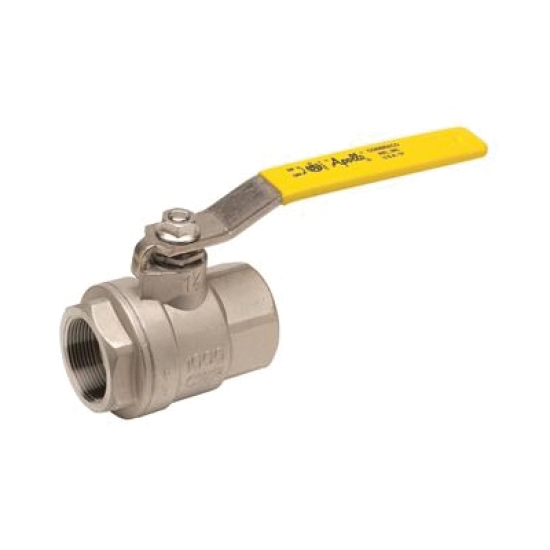

Apollo Valves 76F-100-A Series 76F10427A Ball Valve, 3/4 IN, FNPT, Stainless Steel, 150 PSIG
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: VLV BA SS 76F10427A 3/4
- MPN: 76F10427A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Apollo Valves Ball Valve, Type: 2-Piece, Full Port, Brand Name: Apollo Valves, Item Name: Ball Valve, Series/Model: 76F-100-A Series, 3/4 IN Nominal, FNPT Connection, 150 PSIG, 0.81 IN Opening, Stainless Steel Body, Lever Operator, Stainless Steel Handle, Stainless Steel Stem, Stainless Steel Gland, RPTFE Seat, RPTFE Seal, Material Standard: ASTM A276, ASTM A351, Industry Standards: NACE MR-01-75-2000, 1.62 IN Width, Lead Free: Yes, Other Physical Dimension: 2.77 IN Inlet To Outlet Length, 1.96 IN Top To Inlet Center, Brand: Apollo Valves
| Brand Name | : | Apollo Valves |
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Full Port |
| Series/Model | : | 76F-100-A Series |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 150 PSIG |
| Opening Size | : | 0.81 IN |
| Body Material | : | Stainless Steel |
| Operator Type | : | Lever |
| Handle Material | : | Stainless Steel |
| Stem Material | : | Stainless Steel |
| Gland Material | : | Stainless Steel |
| Seat Material | : | RPTFE |
| Seal Material | : | RPTFE |
| Material Standard | : | ASTM A276, ASTM A351 |
| Industry Standards | : | NACE MR-01-75-2000 |
| Width | : | 1.62 IN |
| Lead Free | : | Yes |
| Other Physical Dimension | : | 2.77 IN Inlet To Outlet Length, 1.96 IN Top To Inlet Center |
| Brand | : | Apollo Valves |
- The Apollo Valves 76F Series is a two-piece full port stainless steel ball valve
- 316 SS investment cast components
- Two-piece body
- Blowout-proof stem design
- Adjustable packing gland
- Proudly made in USA
